Steel Bar and Structural Steel Testing

Steel bars testing and structural bars testing are integral components in modern civil engineering and construction. These materials are crucial for providing the necessary strength and durability to reinforced concrete structures such as buildings, bridges, roads, and industrial plants. Steel bars primarily serve as reinforcement, helping concrete withstand tensile forces and improving the overall mechanical properties of structures.

Steel bars come in various forms and grades to suit different construction applications. Reinforcing steel bars (rebars) are used to strengthen concrete, whereas structural steel bars are used to build beams, columns, and frames that support the structure. Given their essential role, it is imperative to ensure the quality, strength, and reliability of these materials through comprehensive testing.

This report provides a detailed analysis of steel bars and structural bars, the testing methods employed to evaluate their properties, the reference codes that govern these tests, and the overall benefits of these testing procedures. It also highlights the importance of proper testing in ensuring the safety and efficiency of steel bars in construction projects.

Types of Steel Bars

Steel bars are classified based on their function and the materials from which they are made. The main types of steel bars used in construction are reinforcing steel bars and structural steel bars.

1. Reinforcing Steel Bars (Rebars)

Reinforcing steel bars, also known as rebars, are essential for the reinforcement of concrete structures. Concrete, while strong in compression, is weak in tension. Rebars provide the tensile strength needed to resist the internal stresses that arise from applied loads.

Rebars come in different grades, which reflect their yield strength, or the stress at which they begin to deform permanently. The most common grades of rebars are:

• Fe415: This grade of steel has a yield strength of 415 MPa (megapascals). It is commonly used in medium-strength concrete constructions.
• Fe500: A higher-strength grade with a yield strength of 500 MPa, Fe500 is suitable for high-strength concrete applications in buildings and infrastructure projects.
• Fe550: With a yield strength of 550 MPa, Fe550 is often used in structures that demand greater durability and resistance to higher loads.
• Fe600: The highest grade, Fe600, with a yield strength of 600 MPa, is used in extreme conditions where high strength and durability are paramount.

Rebars are manufactured in varying diameters and lengths and may have deformations on their surface (e.g., ribs or indentations) to improve bonding with concrete.

2. Structural Steel Bars

Structural steel bars are designed to provide the framework for load-bearing elements in buildings and other structures. These bars come in a variety of shapes, including angles, I-beams, channels, and flat bars, and they are made of mild steel, carbon steel, or stainless steel, depending on the project’s requirements.

• Angles: These bars have an L-shaped cross-section and are used in bracing, framing, and other structural applications where high strength is needed.
• I-Beams: I-shaped cross-sections are used primarily in the construction of beams, columns, and structural frames, providing excellent resistance to bending.
• Channels: These bars have a U-shaped cross-section and are often used in framing systems, bridges, and other heavy-duty applications.
• Flat Bars: These are simply bars with flat surfaces and are used in a wide range of construction and manufacturing applications.

Each type of structural steel bar is tailored to a specific function, and its properties are chosen based on the stresses and load-bearing needs of the structure.

Steel Bar Testing Methods

The performance of steel bars is critical to the safety and longevity of the structure. Steel must be tested to ensure it possesses the required mechanical, chemical, and physical properties. Below are the most common tests conducted on steel bars:

1. Tensile Test

• Purpose: The tensile test is used to evaluate the strength and ductility of steel. It determines how much load the steel can withstand before breaking and how much deformation it undergoes without failure.

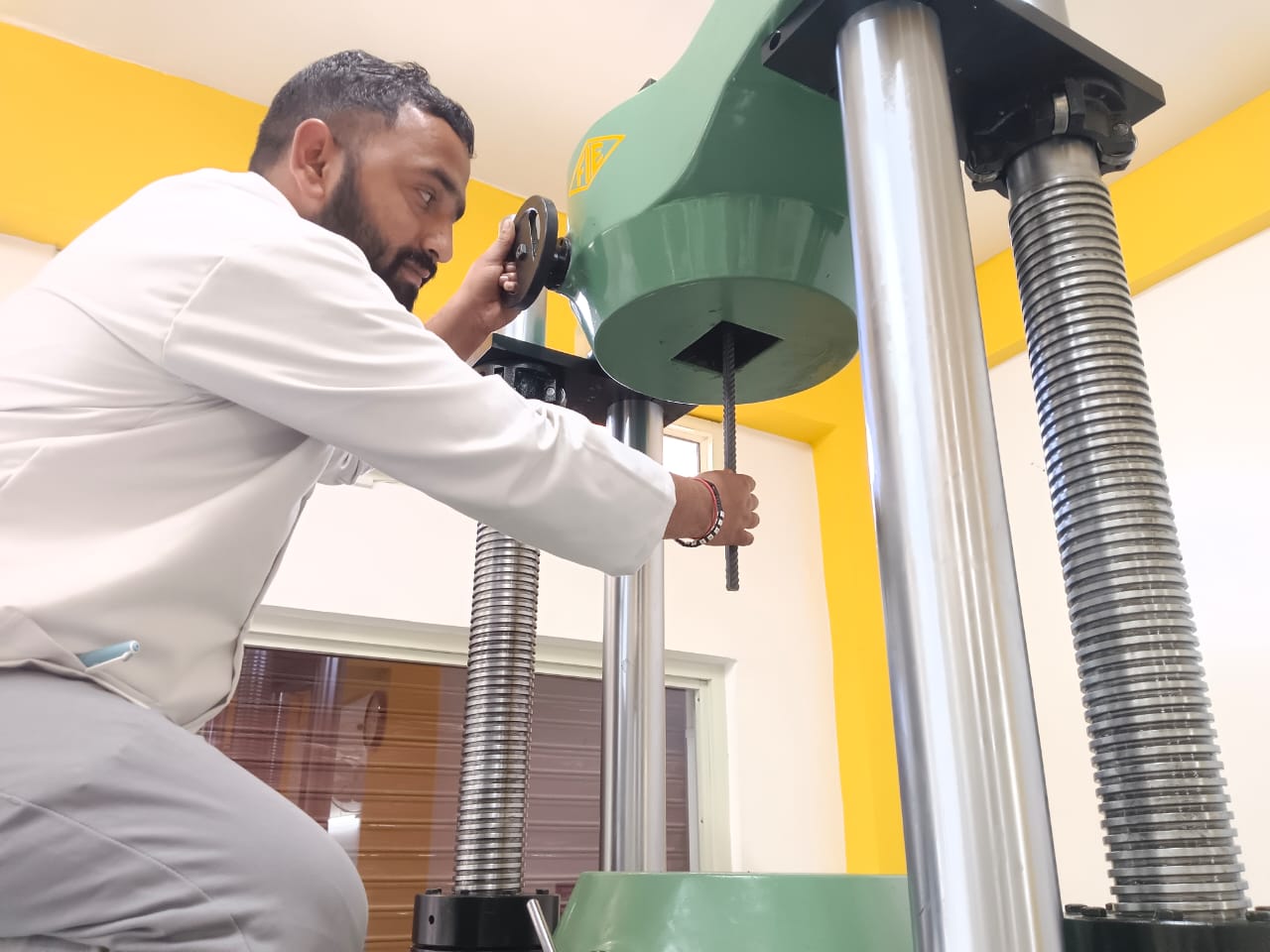

• Procedure: A steel sample is pulled in a testing machine until it breaks. The force applied and the elongation of the specimen are recorded. The key results are:

• Yield Strength: The stress at which the steel starts to deform permanently.
• Ultimate Tensile Strength (UTS): The maximum stress the steel can withstand before failing.
• Elongation: The percentage of length increase that the steel undergoes before breaking, indicating its ductility.

Reference Codes:

• ASTM A370: Standard Test Methods and Definitions for Mechanical Testing of Steel Products
• IS 1608: Indian Standard for Tensile Testing of Steel

2. Bend Test

• Purpose: This test assesses the ability of steel bars to bend without cracking or breaking. It is crucial for steel bars used in reinforced concrete, where they are often bent during installation.
• Procedure: A sample steel bar is bent to a prescribed angle. After bending, it is examined for cracks, fractures, or other signs of failure. The bending angle typically ranges from 90° to 180°.
• Outcome: A bar that can bend without cracking or breaking is considered ductile, an important property for reinforcement in concrete.

Reference Codes:

• IS 1786: High Strength Deformed Steel Bars and Wires for Concrete Reinforcement
• ASTM A615: Standard Specification for Deformed and Plain Carbon-Steel Bars for Concrete Reinforcement

3. Charpy Impact Test

• Purpose: This test measures the toughness of steel, or its ability to absorb energy during sudden impacts. It is particularly important for structures that may experience shock loading or extreme temperature variations.
• Procedure: A notched steel sample is struck with a pendulum hammer, and the amount of energy absorbed during fracture is recorded. The test is typically performed at various temperatures to simulate the steel’s behavior in different environmental conditions.
• Outcome: Steel with higher toughness will absorb more impact energy before fracturing.

Reference Codes:

• ASTM E23: Standard Test Methods for Notched Bar Impact Testing of Metallic Materials
• ISO 148: Metallic Materials — Charpy Pendulum Impact Test

4. Hardness Test

• Purpose: Hardness tests measure the resistance of steel to indentation, which is a proxy for its strength and wear resistance.
• Procedure: Several methods can be used, including the Brinell, Vickers, or Rockwell methods. In each method, an indenter is applied to the steel surface under a known load, and the size or depth of the resulting indentation is measured.
• Outcome: Steel with a higher hardness will generally be more resistant to wear and tear, and is suitable for applications where the material will undergo heavy use.

Reference Codes:

• ASTM E10: Brinell Hardness Test
• ASTM E92: Vickers Hardness Test

5. Chemical Composition Test

• Purpose: This test determines the elemental composition of the steel to ensure it contains the correct proportions of alloying elements, such as carbon, manganese, sulfur, phosphorus, and others.
• Procedure: A sample of steel is subjected to spectroscopic or wet chemical analysis to measure the concentration of different elements. The results help confirm whether the steel meets the required specifications for strength and performance.
• Outcome: The test ensures the steel is of the correct grade and will perform as expected in the final structure.

Reference Codes:

• ASTM A370: Mechanical Testing of Steel Products
• IS 228: Methods for Chemical Analysis of Steel

6. Hardness Test

Purpose: Measures resistance to indentation and wear

Using Brinell, Vickers, or Rockwell methods, we measure how resistant the steel surface is to penetration. Higher hardness generally indicates greater strength.

Reference Codes: ASTM E10 (Brinell), ASTM E92 (Vickers)

7. Corrosion Resistance Test

• Purpose: This test measures the steel’s ability to resist corrosion, which is particularly important for structures exposed to harsh environments, such as coastal areas or industrial zones.
• Procedure: Steel samples are exposed to a corrosive environment, such as a salt fog chamber or acidic solution, for a specified period. The extent of corrosion is then measured.
• Outcome: Steel with high corrosion resistance will exhibit minimal degradation in corrosive environments.

Reference Codes:

• ASTM G85: Standard Practice for Modified Salt Spray (Fog) Testing
• ISO 9227: Corrosion Tests in Artificial Atmospheres

8. Weldability Test

• Purpose: This test evaluates how well steel bars can be welded without experiencing defects such as cracking or poor fusion in the weld zone.
• Procedure: Steel bars are welded under controlled conditions, and the welded joints are inspected for defects using visual inspection or non-destructive testing methods.
• Outcome: Steel bars that pass the weldability test are suitable for use in welded structures.

Reference Codes:

• AWS D1.1: Structural Welding Code – Steel

Reference Codes for Steel Bars

The testing of steel bars is governed by a range of international and national standards. Some of the most important reference codes for steel bars include:

• ASTM A615 / A615M: Standard Specification for Deformed and Plain Carbon-Steel Bars for Concrete Reinforcement.
• IS 1786: High Strength Deformed Steel Bars and Wires for Concrete Reinforcement.
• ISO 9001: Quality Management Systems — Requirements (for ensuring the quality of the steel manufacturing process).
• BS 4449: Steel for the Reinforcement of Concrete — Specification.
• EN 10080: Steel for the Reinforcement of Concrete — General Rules for the Manufacture of Steel Products.

These codes are crucial in ensuring that steel bars meet the necessary mechanical, chemical, and physical properties for their intended use in construction.

Benefits of Steel Bar Testing

1. Quality Assurance: Testing ensures that the steel bars used in construction meet the required strength, ductility, and other properties necessary for their role in reinforced concrete and structural applications.
2. Safety: Structural safety is paramount in construction. Testing prevents the use of substandard materials that could lead to catastrophic failures, protecting both workers and end users.
3. Compliance with Standards: By adhering to international and national testing standards, the quality and performance of steel bars are guaranteed to meet the expected benchmarks for safety and reliability.
4. Cost Efficiency: Proper testing reduces the risk of material failure, which could lead to expensive repairs and delays. It ensures that the materials used are fit for their intended purpose, reducing waste.
5. Durability: Testing the steel’s resistance to factors like corrosion and impact helps ensure that the material will perform well under various environmental stresses, increasing the longevity of the structure.

Need for Testing Steel Bars

1. Structural Integrity: Steel bars form the backbone of reinforced concrete structures. Testing ensures that the steel bars possess the necessary mechanical and physical properties to provide the required support and strength.
2. Environmental Factors: Testing ensures that steel bars can withstand specific environmental factors, such as temperature fluctuations, moisture, and corrosive elements, that might affect their performance.
3. Compliance with Design Specifications: Engineers require specific material properties to meet the design specifications of structures. Testing ensures that the steel bars comply with these requirements.
4. Innovation: With the development of new steel alloys and products, testing ensures that these innovations meet the same rigorous standards as traditional steel bars.

Contact Us for Steel Bar and Structural Steel Testing →

Industries We Serve

Highway & Road Construction – Testing for NHAI, state highway projects per MoRTH specifications

• Building Construction: Residential, commercial, and industrial buildings
• Bridge & Flyover Projects: Critical testing for structural steel components
• Railway Infrastructure: Testing for railway construction projects
• Industrial Plants: Manufacturing facilities, warehouses, and factories
• Ready-Mix Concrete Plants: Quality assurance for RMC producers

Frequently Asked Questions

What is the difference between Fe415 and Fe500 steel bars?

Fe415 has a minimum yield strength of 415 MPa while Fe500 has 500 MPa. Fe500 is stronger and allows for reduced steel quantity in design, but requires more careful bending. Both grades are tested per IS 1786 standards at our laboratory.

How long does steel bar testing take at NKMPV?

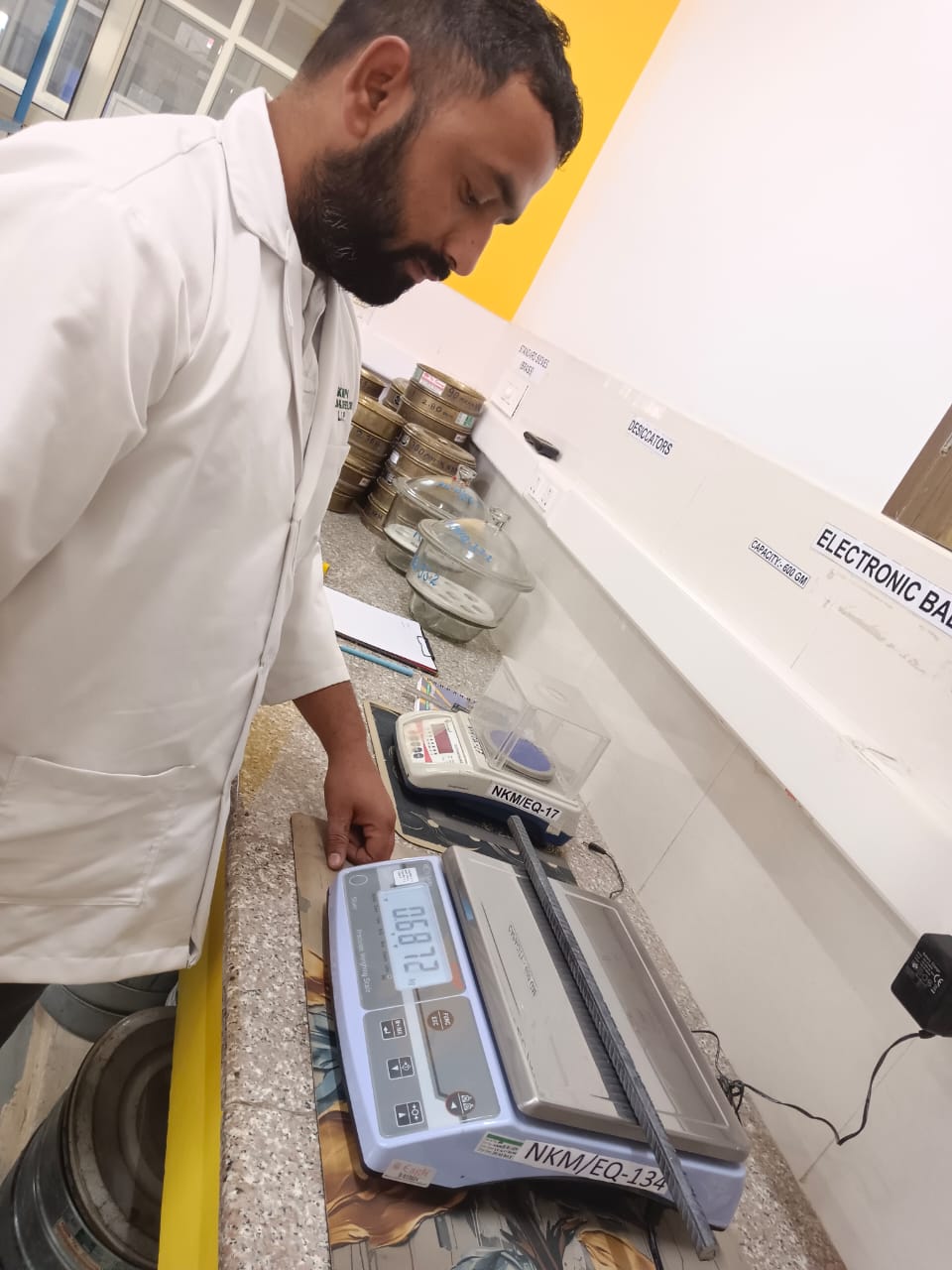

Standard testing including tensile test, bend test, and weight per metre typically takes 3-5 working days. Chemical composition analysis may take additional time. Express testing is available for urgent projects.

What sample size is required for steel bar testing?

For tensile and bend tests, we typically require 3 samples of 600mm length for each diameter and heat number. For chemical analysis, a small piece of approximately 50 grams is sufficient. Contact us for specific requirements.

Are NKMPV test reports accepted by NHAI and government departments?

Yes. Our NABL-accredited test reports (Certificate No. TC-14144) are accepted by NHAI, CPWD, state PWDs, municipal corporations, and all government agencies. They meet MoRTH specifications for highway projects.

What is the importance of the bend test for steel bars?

The bend test verifies that steel bars can be bent during construction without cracking. Rebars are frequently bent for hooks, cranks, and stirrups. A bar that passes the bend test (usually 180° bend around specified mandrel) has adequate ductility for construction use.

How do you test for chemical composition of steel?

We use Optical Emission Spectrometry (OES) to analyze the elemental composition of steel. This identifies the percentage of carbon, manganese, silicon, sulfur, phosphorus, and other elements. Results are compared against IS 1786 limits to verify compliance.

What causes steel bar testing to fail?

Common reasons for failure include insufficient yield strength, excessive elongation or inadequate elongation, cracking during bend test, incorrect chemical composition, and weight per metre outside tolerance limits. We provide detailed reports identifying specific non-conformances.

Can you test steel bars at our construction site?

Our comprehensive testing requires laboratory equipment and controlled conditions. However, we offer sample collection services where our team visits your site to collect properly identified samples for testing at our facility.

Conclusion

Steel bars, whether used as reinforcing elements in concrete or as load-bearing structural components, are fundamental to the integrity of modern infrastructure. Their primary function is to provide the necessary tensile strength and support for structures that are exposed to a wide range of mechanical and environmental stresses. The role of these materials in reinforcing concrete or in forming structural elements ensures that buildings, bridges, highways, and other essential infrastructure can endure the forces applied over their lifespan. As a result, the quality, strength, and reliability of steel bars directly impact the safety and performance of the entire structure.

Comprehensive testing is paramount in ensuring that steel bars meet the required specifications and standards, and that they possess the necessary mechanical, chemical, and physical properties for their intended use. Testing methods such as tensile tests, bend tests, impact tests, hardness tests, and corrosion resistance tests, provide essential data about the material’s ability to perform under real-world conditions. This data is critical in preventing failures, reducing the risks associated with construction, and ensuring that the steel bars used in the project will last for many years without degradation or failure.

The use of internationally recognized reference codes such as ASTM, IS, BS, and ISO standards ensures that testing procedures are consistent, reliable, and meet the highest quality benchmarks. These codes not only provide guidelines for the testing of steel bars but also establish parameters for acceptable limits, ensuring that only materials that meet or exceed these criteria are used in construction projects. Compliance with these standards is not only a regulatory requirement but also a moral imperative to ensure the safety of workers, the public, and the long-term viability of structures.

In addition to safety and regulatory compliance, the benefits of testing steel bars extend to cost efficiency and the longevity of structures. Proper testing can prevent the use of defective or substandard materials, thus avoiding costly repairs or replacements down the line. It ensures that the materials used will perform as expected, which leads to cost savings, fewer disruptions during the construction process, and a reduction in the risk of costly failures or legal issues. Furthermore, testing for durability against environmental factors such as corrosion, temperature variations, and mechanical wear helps ensure that the steel bars used will continue to perform well over the life of the structure, reducing the need for frequent maintenance or early replacement.

The need for testing steel bars also becomes increasingly important as new steel alloys and technologies are developed. While these innovations can offer improved performance, it is critical to rigorously test these new materials to ensure they meet the same high standards as traditional steel bars. Additionally, as construction techniques evolve and new challenges arise, such as heightened environmental conditions or novel load-bearing requirements, continuous testing and adaptation of new testing methods will be essential in maintaining the reliability and safety of steel bars in modern construction.

In conclusion, steel bars are irreplaceable in the modern construction industry, and their testing is crucial for ensuring the integrity, safety, and longevity of structures. The rigorous testing processes, underpinned by industry standards and reference codes, allow engineers, architects, and construction professionals to confidently select materials that will perform optimally under the expected conditions. The need for these testing procedures goes beyond just regulatory compliance; it reflects a commitment to the safety of communities, the sustainability of infrastructure, and the overall quality of the built environment. Thus, proper testing of steel bars is not just an option, but a necessity that helps safeguard the future of construction.

Given the importance of steel bars in construction, rigorous testing is not just a regulatory requirement but a vital step to ensure the quality, reliability, and longevity of our infrastructure.
