Paver Block Testing: Comprehensive Evaluation for Quality Assurance
Introduction
Paver blocks, also referred to as precast concrete blocks, have revolutionized the way pavements, driveways, walkways, and parking areas are constructed. These blocks are manufactured using a mix of cement, sand, aggregates, and water, and are produced in various sizes, shapes, and colors, making them a versatile option for urban development projects. Paver blocks are increasingly favored for their aesthetic appeal, ease of installation, and durability.
The quality of paver blocks plays a pivotal role in ensuring their functionality, safety, and long-term performance. To guarantee that the blocks are suitable for the intended application, it is essential to conduct rigorous testing to assess their strength, durability, and other mechanical properties. Among the most critical tests for evaluating paver blocks are the compressive strength test and the water absorption test. These tests help determine the blocks’ ability to withstand loads, resist water penetration, and maintain structural integrity under varying environmental conditions. This report will provide a detailed overview of both tests, their procedures, purposes, benefits, and the importance of adhering to relevant standards, particularly the Indian Standard IS 15658:2006.
- Compressive Strength of Paver Blocks
1.1 Description
Compressive strength is defined as the ability of a material to withstand axial loads without failure. In the case of paver blocks, compressive strength is a critical factor that determines how well they can bear the loads imposed by pedestrian and vehicular traffic. When exposed to heavy traffic, paver blocks experience high compressive forces, and if their strength is inadequate, the blocks may crack, break, or fail prematurely.
The compressive strength of paver blocks is typically tested by applying a gradually increasing load to the block using a compression testing machine. The load is applied uniformly until the block fails, and the point at which failure occurs is used to calculate the compressive strength. This property is crucial because it helps engineers and manufacturers assess the performance of the blocks under load-bearing conditions and their suitability for specific applications.
1.2 Purpose of Testing
1.2.1 Evaluate Strength
The primary purpose of the compressive strength test is to ensure that paver blocks have adequate strength to withstand the intended loads, whether from pedestrians, vehicles, or other external factors. For blocks used in driveways or roads, higher compressive strength is required to handle the weight of cars and trucks. This evaluation ensures the safety and reliability of the blocks over time.
1.2.2 Quality Assurance
By testing the compressive strength of paver blocks, manufacturers can confirm that their products meet the required strength standards as set out by relevant guidelines, such as IS 15658:2006. This test also helps identify inconsistencies in the manufacturing process and ensures that the blocks are made to the desired specifications.
1.2.3 Safety Assurance
Paver blocks subjected to heavy traffic and extreme weather conditions must be capable of withstanding significant forces. Compressive strength testing is essential to confirm that the blocks will not crack or fail, ensuring that the paved areas remain safe for use and that there is no risk of accidents due to block degradation.
1.3 Testing Procedure
1.3.1 Preparation

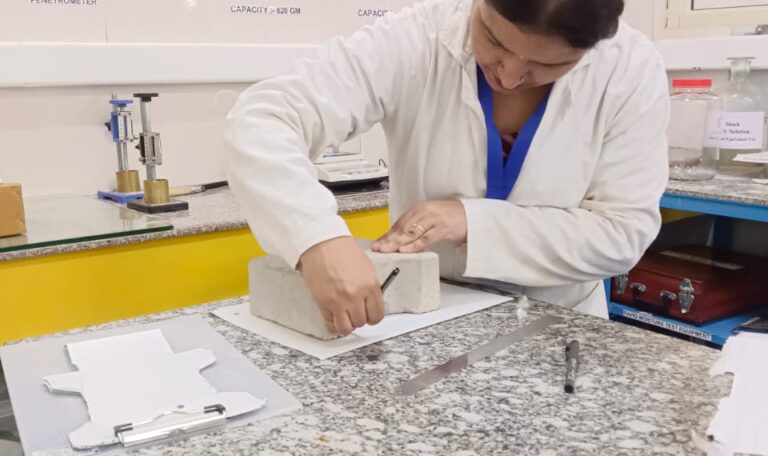

For accurate results, the selected paver blocks must be in good condition, free from cracks, air pockets, or defects that might skew the test results. To simulate real-world conditions and ensure that the blocks are saturated, the samples should be immersed in water for 24 hours prior to testing.
1.3.2 Test Setup

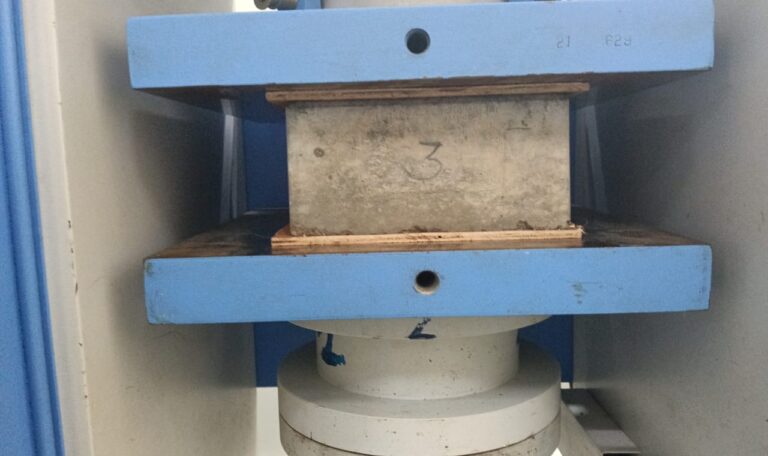

The compression testing machine must be calibrated before use. Once calibrated, the block is placed centrally on the machine’s platen, which applies the load. It is important that the block is aligned properly so that the load is distributed evenly. The load is applied uniformly at a rate of 15 N/mm² per minute until the block fails.
1.3.3 Calculation
The compressive strength is determined by dividing the failure load by the cross-sectional area of the block. This can be represented as:
Compressive Strength (N/mm²)=Failure Load (N)Area of the Block (mm²)\text{Compressive Strength (N/mm²)} = \frac{\text{Failure Load (N)}}{\text{Area of the Block (mm²)}}Compressive Strength (N/mm²)=Area of the Block (mm²)Failure Load (N)
In this formula:
- Failure Load (N)is the maximum load that the block can sustain before failure.
- Area of the Block (mm²)is the cross-sectional area over which the load is applied.
The resulting compressive strength value is reported in N/mm², which is a standard unit of measurement for the material’s strength.
1.3.4 Reporting
It is essential to perform the test on at least three different specimens from the same batch to account for any variability. The final compressive strength is calculated as the average of these tests, ensuring that the reported value is representative of the overall batch.
1.4 Benefits of Compressive Strength Testing
1.4.1 Durability Assurance
Paver blocks with sufficient compressive strength can withstand the rigors of external loads and environmental stresses. This durability helps reduce the likelihood of cracks, deformations, or failure due to traffic, pressure, or temperature fluctuations.
1.4.2 Compliance with Standards
Testing ensures that the paver blocks meet the standards specified in IS 15658:2006, ensuring that the blocks are suitable for use in public infrastructure and comply with industry safety requirements.
1.4.3 Enhanced Performance
Compressive strength testing helps categorize paver blocks into different grades based on their strength. This enables engineers to choose the most appropriate blocks for specific applications, such as M30 for pedestrian walkways or M40 for areas exposed to heavy traffic.
1.4.4 Economic Benefits
By ensuring that the paver blocks meet the strength requirements, manufacturers can minimize the likelihood of repairs or replacements, resulting in long-term cost savings for the project. This contributes to the overall economic viability of the paving solution.
1.5 Minimum Requirements
According to IS 15658:2006, paver blocks are classified into different strength grades, such as M30, M40, and so on. The number in each grade denotes the minimum compressive strength in N/mm², and the blocks must meet or exceed the specified value to be deemed suitable for use. For instance:
- M30 Grade: Minimum compressive strength of 30 N/mm².
- M40 Grade: Minimum compressive strength of 40 N/mm².
These classifications ensure that paver blocks are used in the appropriate applications, ensuring safety and performance over time.
- Water Absorption Test
2.1 Description
The water absorption test measures the porosity of paver blocks, which is essential for determining how much water the blocks can absorb before they become prone to moisture-related damage. A high rate of water absorption indicates that the block has excessive porosity, which can weaken its structure over time and make it more susceptible to weathering and freeze-thaw damage.
Water absorption is closely linked to the block’s resistance to environmental factors. Blocks with high absorption rates tend to lose strength faster and are more vulnerable to erosion, cracking, and other types of deterioration.
2.2 Purpose of Testing
2.2.1 Evaluate Durability
The water absorption test helps assess the block’s overall resistance to moisture penetration, ensuring that it will not deteriorate when exposed to water or wet conditions. This is particularly important for areas exposed to frequent rain or freeze-thaw cycles.
2.2.2 Identify Defects
Excessive porosity or improper curing during the manufacturing process can lead to increased water absorption. By performing the water absorption test, manufacturers can detect these defects and correct any issues in the production process.
2.2.3 Ensure Quality
The water absorption test ensures that the blocks meet the requirements for density and moisture resistance as specified in IS 15658:2006, confirming that the blocks are made from high-quality materials and production methods.
2.3 Testing Procedure
2.3.1 Preparation
Prior to testing, the paver blocks are cleaned to remove any dust, dirt, or other surface contaminants that could affect the accuracy of the results.
2.3.2 Dry Weight Measurement
The blocks are oven-dried at 105 ± 5°C for at least 24 hours. This ensures that all moisture content is removed before the block is weighed. Once cooled to room temperature, the block is weighed (W1).
2.3.3 Immersion in Water
The blocks are then immersed in water at a temperature of 27 ± 2°C for 24 hours. This period allows the blocks to absorb water through their porous surface, simulating the exposure they would face in real-world conditions.
2.3.4 Wet Weight Measurement
After 24 hours of immersion, the blocks are removed from the water and any surface water is wiped off. The blocks are then weighed again (W2).
2.3.5 Calculation
The water absorption percentage is calculated using the formula:
Water Absorption (%)=(W2−W1W1)×100\text{Water Absorption (\%)} = \left( \frac{W2 – W1}{W1} \right) \times 100Water Absorption (%)=(W1W2−W1)×100
Where:
- W1is the dry weight of the block.
- W2is the wet weight of the block.
2.3.6 Reporting
The final water absorption value is the average of at least three test specimens. The result helps determine whether the block meets the maximum allowable absorption rate set by the relevant standards.
2.4 Benefits of Water Absorption Testing
2.4.1 Improved Weather Resistance
Blocks with low water absorption are less susceptible to damage caused by water infiltration. This enhances the block’s ability to withstand adverse weather conditions, such as freezing and thawing cycles, which can cause cracks and other forms of damage.
2.4.2 Longevity Assurance
Low water absorption means the block is denser and less prone to deterioration over time. This leads to increased longevity and reduces the need for frequent repairs or replacements.
2.4.3 Compliance Verification
Water absorption testing confirms that the paver blocks meet the requirements set out in IS 15658:2006, ensuring that the blocks are suitable for various construction applications.
2.4.4 Structural Integrity
By verifying the porosity of the blocks, the water absorption test helps ensure that the blocks remain robust and structurally sound under environmental stresses.
2.5 Maximum Allowable Limit
According to IS 15658:2006, the water absorption of paver blocks should not exceed 6% by weight. Any blocks with higher absorption rates are considered unsuitable for most construction projects, as they are prone to rapid deterioration when exposed to moisture.
- Importance of Testing
3.1 Ensuring Quality and Performance
Regular testing of paver blocks ensures that each batch meets the necessary strength and durability standards. This guarantees that the blocks will perform as expected in the field, reducing the likelihood of failures or costly repairs.
3.2 Compliance with Standards
Adhering to IS 15658:2006 ensures that the blocks meet national standards for precast concrete products. This is critical for public safety, as substandard blocks can lead to infrastructure failures or accidents.
3.3 Reducing Maintenance Costs
By investing in quality control and testing, manufacturers can reduce the chances of premature failure of the paver blocks. This leads to long-term cost savings in maintenance, as high-quality blocks will require fewer repairs or replacements.
3.4 Promoting Sustainable Practices
Testing ensures that only blocks meeting strict quality standards are used in construction. This reduces waste and promotes sustainable resource management in the production of paver blocks.
Conclusion
Compressive strength and water absorption testing are indispensable tools for assessing the quality and suitability of paver blocks for construction applications. These tests not only help evaluate the strength and durability of the blocks but also ensure that they meet the strict performance standards set by IS 15658:2006. The compressive strength test helps verify that the blocks can withstand the anticipated loads from both pedestrian and vehicular traffic, preventing premature failure or damage. On the other hand, the water absorption test assesses the block’s resistance to environmental factors, such as water infiltration, freeze-thaw cycles, and weathering, ensuring that the blocks remain structurally sound and durable over time.
By adhering to the guidelines and standards outlined in IS 15658:2006, manufacturers can confidently produce paver blocks that are reliable, safe, and suitable for use in a wide range of infrastructure projects. Regular testing not only ensures compliance with industry standards but also helps identify potential manufacturing defects or inconsistencies in production processes, providing an opportunity for corrective measures before the blocks reach the market.
Furthermore, consistent and rigorous testing contributes to significant economic benefits in the long run. High-quality paver blocks with optimal compressive strength and low water absorption require fewer repairs and replacements, reducing maintenance costs for property owners and municipalities. This leads to better resource allocation, cost efficiency, and enhanced project sustainability.
From a broader perspective, these testing practices promote a more sustainable approach to urban development. By producing durable and high-performance paver blocks, the overall environmental impact of construction projects can be minimized, as fewer resources are consumed for repairs and replacements, and the need for waste management is reduced.
In conclusion, the importance of compressive strength and water absorption testing cannot be overstated. These tests play a pivotal role in ensuring that paver blocks meet the required standards for structural integrity, weather resistance, and long-term durability. By continuing to prioritize quality control, manufacturers can guarantee that their products will serve their intended purpose effectively, contributing to safe, reliable, and aesthetically appealing infrastructure that will stand the test of time. Ultimately, these practices foster confidence among consumers, engineers, and policymakers, ensuring that paver blocks remain a cornerstone of modern construction in both residential and commercial settings.
