1. Introduction to Grain Size Analysis

Grain size analysis is a critical test performed in soil mechanics and geotechnical engineering to classify soil materials based on their particle size distribution. The analysis helps in understanding the soil’s behavior under different conditions, such as compaction, permeability, drainage, and load-bearing capacity. By analyzing the grain size distribution, engineers can select appropriate construction materials, estimate soil stability, and predict the soil’s response to different types of stresses and environmental conditions.

Grain size analysis methods include dry sieve analysis, wet sieve analysis, and the hydrometer test. Each of these methods provides important insights into the composition of soil or other granular materials. These tests are essential in the classification of soils, understanding their mechanical properties, and assessing their suitability for various engineering applications.

The tests for grain size analysis are standardized by various international codes, including ASTM (American Society for Testing and Materials), AASHTO (American Association of State Highway and Transportation Officials), and IS (Indian Standards). These standards ensure consistency and reliability of the results. The following report discusses these methods, their purpose, benefits, and provides code references for each test.

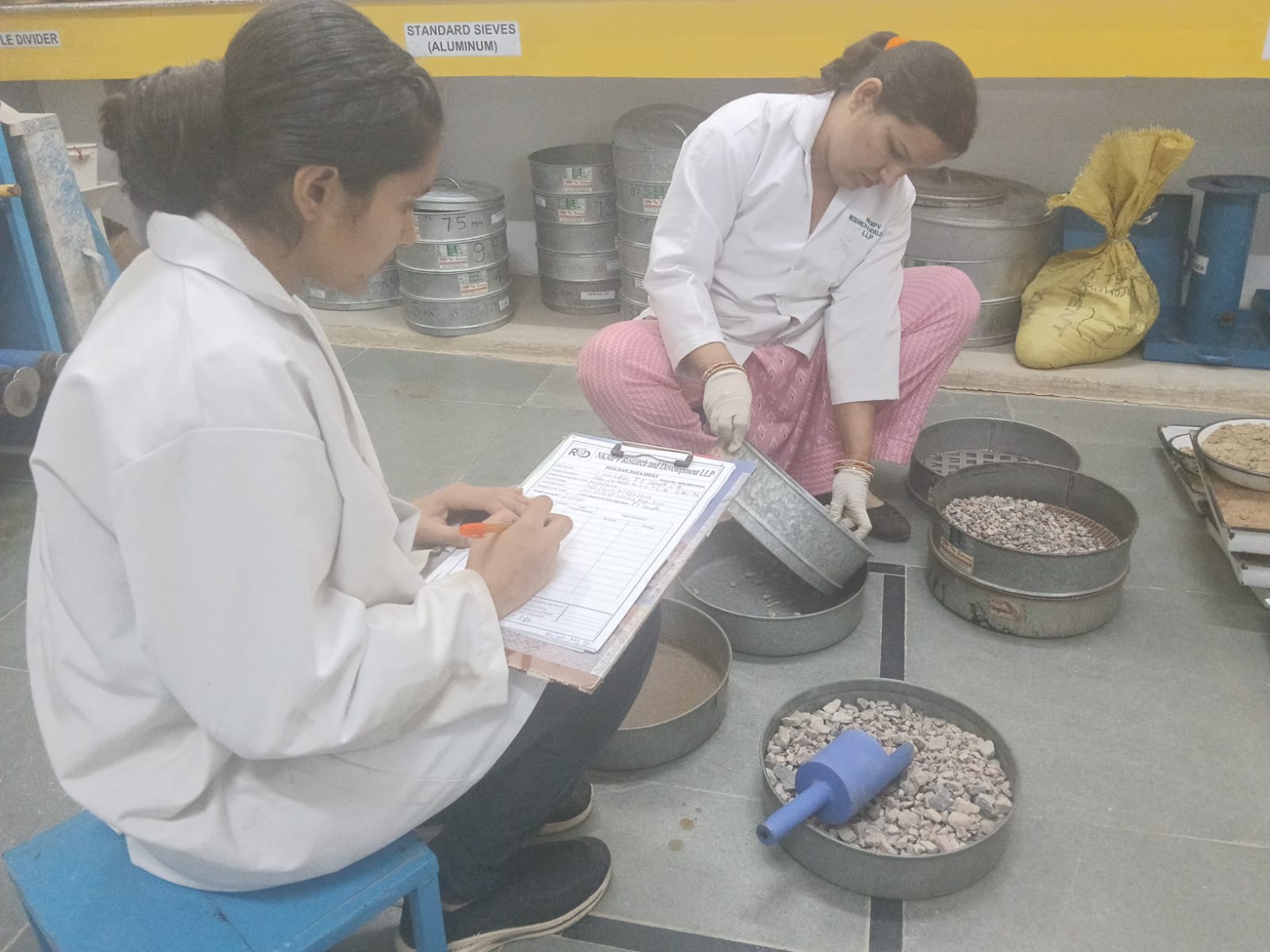

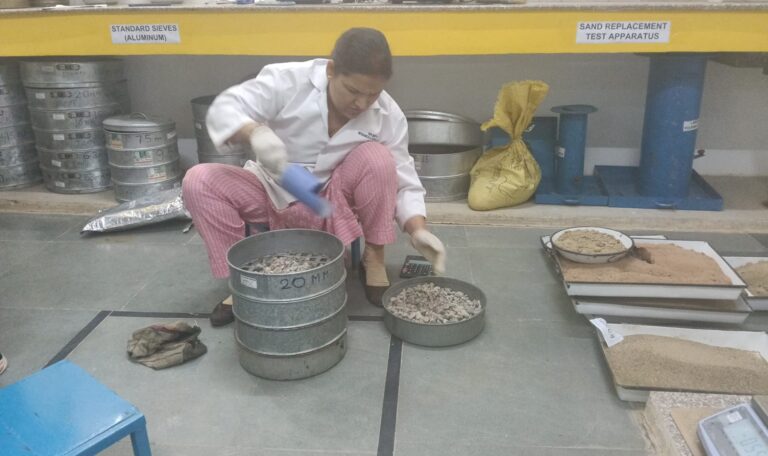

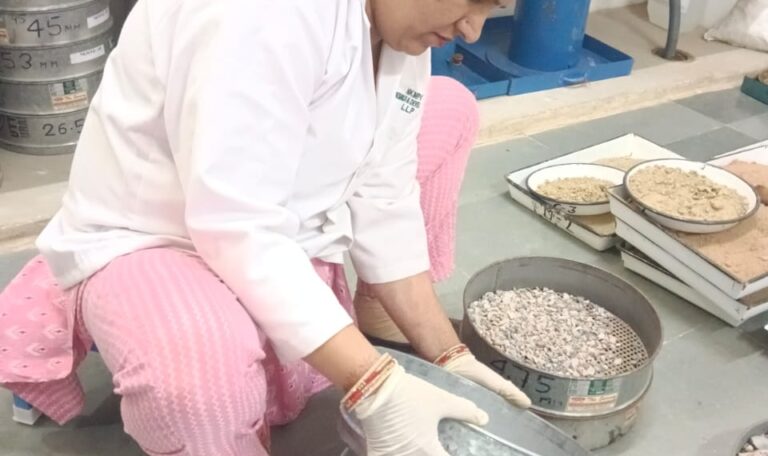

2. Dry Sieve Analysis

2.1 Description of Dry Sieve Analysis

Dry sieve analysis is a physical method used to determine the particle size distribution of coarse-grained soils. This technique involves separating the granular material through a series of sieves with progressively smaller mesh sizes. The soil sample is dried, and then it is passed through the sieve stack. The material retained on each sieve is weighed and recorded. The percentage of the material retained on each sieve is calculated relative to the total weight of the sample.

The sieves typically range in size from 4.75 mm (No. 4 sieve) to 0.075 mm (No. 200 sieve), with each sieve having specific openings to separate particles based on their size. The dry sieve analysis primarily determines the amount of sand and gravel in a sample and is not effective for fine-grained materials such as clay and silt.

2.2 Purpose of Dry Sieve Analysis

The primary objective of the dry sieve analysis is to evaluate the granular composition of the sample, specifically identifying the proportion of coarse particles. This is useful for the classification of soils and understanding their suitability for construction, road building, and foundation work. By determining the relative proportions of sand, gravel, and larger particles, engineers can assess how the soil will behave under load, how well it will compact, and its drainage characteristics.

Dry sieve analysis is typically used for coarse soils that contain significant amounts of sand or gravel. It is also an essential test for materials used in concrete, asphalt, and other construction processes.

2.3 Benefits of Dry Sieve Analysis

• Soil Classification:Provides clear data on the size distribution of particles, essential for classifying soil according to standard systems such as the Unified Soil Classification System (USCS) or AASHTO soil classification.
• Quality Control:Helps in ensuring the quality of materials, especially in construction projects where the proper gradation of materials affects the overall integrity of structures.
• Predicting Soil Behavior:The particle size distribution influences the compaction, permeability, and load-bearing capacity of the soil, which are vital for the design of foundations and other structures.

2.4 Procedure and Code Reference

The dry sieve analysis procedure follows standard practices outlined in ASTM D6913 (Standard Test Methods for Particle-Size Distribution (Gradation) of Soils Using Sieve Analysis) and IS 2720 Part 4 (Indian Standard for Determination of Grain Size Distribution).

1. Step 1:A representative sample of soil is obtained and dried in an oven at 105°C to 110°C to remove moisture. This ensures that the test results are not influenced by the presence of water.
2. Step 2:The sample is placed on a sieve stack, with sieves arranged from the coarsest at the top (4.75 mm sieve) to the finest at the bottom (0.075 mm sieve).
3. Step 3:The sieve stack is mechanically shaken for a specified time (usually 10 to 15 minutes), allowing the particles to be separated based on size.
4. Step 4:The amount of material retained on each sieve is weighed to the nearest gram. The data is recorded, and the percentage of the total mass retained on each sieve is calculated.
5. Step 5:The results are presented in a particle size distribution curve or table, which provides a clear representation of the soil’s gradation.

3. Wet Sieve Analysis

3.1 Description of Wet Sieve Analysis

Wet sieve analysis is a modified version of dry sieve analysis, used for soils that contain fine particles, typically those smaller than 0.075 mm (No. 200 sieve). This test is performed by suspending the soil sample in water, which allows for the separation of fine particles that cannot be adequately separated using dry sieving alone.

In this method, the soil sample is washed through a series of sieves, with water acting as the medium to carry away the fine particles. The coarse particles that remain on the sieve are collected, dried, and weighed. The amount of fine particles that pass through the sieve is measured by subtracting the amount of coarse material from the total mass.

3.2 Purpose of Wet Sieve Analysis

The wet sieve analysis is used primarily for fine-grained soils, such as silts and clays, that are not easily separated through dry sieving. This method helps in determining the amount of fine material in a soil sample, which can significantly affect its properties, including plasticity, cohesion, and workability.

By identifying the fine fraction of the soil, engineers can better understand the soil’s behavior in terms of permeability, compaction, and water retention. Wet sieve analysis is also important for determining the soil’s suitability for various construction activities, such as earthworks, foundation design, and drainage systems.

3.3 Benefits of Wet Sieve Analysis

• Accurate Measurement of Fine Particles:It provides a reliable way to quantify fine particles, which is particularly important for the design of foundations and pavements where fine particles influence load distribution.
• Improved Soil Classification:The analysis helps classify soils with significant fine fractions, which are important for soil behavior prediction, particularly in geotechnical engineering.
• Identification of Cohesion and Plasticity:Fine materials such as clay and silt have distinct behavior under loading and moisture conditions, and this test helps in predicting such behavior.

3.4 Procedure and Code Reference

The procedure for wet sieve analysis follows the standards outlined in ASTM D1140 (Standard Test Methods for Amount of Material in Soils Finer than the No. 200 Sieve by Washing) and IS 2720 Part 4 (Indian Standard for Determination of Grain Size Distribution).

1. Step 1:A sample of soil is mixed with water in a container to create a slurry. The slurry ensures that the fine particles are suspended in the water, allowing for easier separation.
2. Step 2:The slurry is poured through a sieve (usually a 0.075 mm sieve), and the soil particles are washed with water to separate the fines.
3. Step 3:The material retained on the sieve is collected, dried in an oven, and weighed.
4. Step 4:The percentage of fine particles is calculated by subtracting the amount of coarse material from the total sample mass.

4. Hydrometer Test

4.1 Description of the Hydrometer Test

The hydrometer test is an advanced method used to measure the distribution of fine particles (typically less than 0.075 mm) in a soil sample. The test is based on Stokes’ Law, which describes the settling velocity of particles in a fluid medium. By measuring the density of the soil-water suspension at different time intervals, the particle size distribution can be determined.

The hydrometer test is primarily used for soils that contain a significant amount of fine particles, such as silts and clays. It is particularly useful when these fine particles are too small to be effectively analyzed using sieves alone.

4.2 Purpose of the Hydrometer Test

The hydrometer test is designed to analyze the finer fractions of the soil sample. It is typically used when the amount of clay and silt in the sample is significant, and it provides detailed information on the particle size distribution of these fine-grained materials. This test is essential for accurately determining the particle size distribution of soils that pass through the 0.075 mm sieve.

The results of the hydrometer test are useful for evaluating the soil’s plasticity, cohesion, and workability. Additionally, it helps in assessing the permeability and drainage properties of fine soils, which are critical for foundation and earthwork designs.

4.3 Benefits of the Hydrometer Test

• Precise Measurement of Fine Particles:The hydrometer test allows for accurate measurement of fine particles, which is crucial for soils with a significant proportion of clays and silts.
• Comprehensive Soil Analysis:It complements sieve analysis by providing detailed information on the fine fraction, offering a complete understanding of the soil’s gradation.
• Enhanced Soil Behavior Prediction:The hydrometer test helps predict the soil’s response to water flow, load application, and compaction, which is essential for infrastructure and foundation design.

4.4 Procedure and Code Reference

The procedure for the hydrometer test follows the guidelines set in ASTM D422 (Standard Test Method for Particle-Size Analysis of Soils) and IS 2720 Part 5 (Indian Standard for Determination of Particle Size Distribution by Hydrometer Method).

1. Step 1:A soil sample is mixed with water to form a suspension. The suspension must be prepared in a way that the particles are dispersed evenly and prevent clumping.
2. Step 2:The suspension is stirred to ensure a uniform mixture.
3. Step 3:The hydrometer is inserted into the suspension at specified intervals, and readings are taken to measure the density of the suspension.
4. Step 4:The readings are recorded over time, and the settling velocity of the particles is calculated based on Stokes’ Law.
5. Step 5:A particle size distribution curve is plotted, and the results are analyzed to determine the percentage of soil that falls within each size range.

5. Comparison of Testing Methods

6. Applications of Grain Size Analysis

Grain size analysis has a wide range of applications in civil and environmental engineering, including:

• Soil Classification:Essential for determining the appropriate classification of soils, which is crucial for the design and construction of buildings, roads, and bridges.
• Geotechnical Engineering:Grain size distribution helps predict the compaction behavior, permeability, and shear strength of soils.
• Environmental Engineering:Used to assess the suitability of soil for filtration, water retention, and contamination control.
• Construction and Infrastructure:In concrete, asphalt, and earthwork projects, accurate gradation is necessary for the material to perform optimally.

7. Conclusion

In conclusion, grain size analysis is an essential test in geotechnical engineering, providing crucial insights into the composition and behaviour of soils. By performing dry sieve, wet sieve, and hydrometer tests, engineers can accurately classify soils based on their particle size distribution. Each of these methods has its specific purpose and is tailored to different soil types—dry sieve analysis is ideal for coarse-grained soils, wet sieve analysis is useful for soils with significant fine particles, and the hydrometer test is essential for analyzing the fine fraction of soils, particularly clays and silts.

Understanding the soil’s gradation is fundamental to predicting its physical properties, including permeability, compaction, and load-bearing capacity, which are all critical factors in the design and construction of infrastructure. This knowledge is not only valuable for ensuring the safety and stability of structures but also for optimizing material selection and construction processes. Proper classification of soils helps engineers make informed decisions regarding the most suitable construction techniques and materials, ensuring durability and cost-efficiency.

The benefits of grain size analysis extend beyond geotechnical applications into environmental engineering, where soil composition impacts water filtration, drainage, and erosion control. It also plays a significant role in agricultural engineering, where soil texture influences crop growth and water retention.

Moreover, adherence to standardized testing procedures, as outlined in codes such as ASTM D6913, ASTM D1140, ASTM D422, IS 2720 Part 4, and IS 2720 Part 5, guarantees the reliability and consistency of results. These standards ensure that the data obtained from grain size analysis can be used confidently for decision-making and design purposes. As construction projects continue to evolve and become more complex, the importance of precise soil analysis remains a cornerstone of successful project outcomes.

In the end, grain size analysis is not just a technical requirement but an indispensable tool for understanding and optimizing soil properties, thus ensuring the safety, sustainability, and efficiency of civil engineering projects worldwide.
