Design Mix for Granular Sub Base (GSB) and Wet Mix Macadam (WMM)

Introduction

The design and quality of road construction materials, particularly Granular Sub Base (GSB) and Wet Mix Macadam (WMM), are vital for the longevity, stability, and performance of road pavements. GSB and WMM are both considered crucial components in the construction of pavements as they provide the necessary load-bearing capacity and help in distributing traffic loads effectively. They also provide drainage, improve stability, and reduce the risk of deformation under repeated traffic stress. The success of road construction hinges on ensuring that the materials used in these layers are of the right quality, properly mixed, and tested to meet specific standards.

The quality of these materials depends significantly on the correct composition or design mix. A well-designed mix optimizes the material properties such as strength, compaction, and durability. This report delves into the essential tests and parameters involved in designing and testing the mix for GSB and WMM, including sieve size analysis, impact value, Atterberg limits, California Bearing Ratio (CBR), water absorption, and other crucial factors. These tests are based on Indian Standard (IS) codes and Ministry of Road Transport and Highways (MORTH) specifications, which serve as the framework for ensuring that materials meet the desired quality standards for road construction.

Section 1: Granular Sub Base (GSB)

1.1 Sieve Size Analysis/Grading of GSB Materials

Description: Grading refers to the distribution of different particle sizes in the GSB material. Grading is a critical factor because it determines the compaction and load distribution properties of the material. Proper grading helps in achieving better inter-particle bonding and prevents excessive voids that could reduce the stability of the base layer. A well-graded aggregate mix ensures that the material is compacted to its maximum density, resulting in a stable and strong base layer.

Purpose of Testing:

• Ensure Gradation:The main objective of grading is to obtain a uniform particle size distribution that enhances the compaction of the material and provides better load transfer. A good gradation leads to a compact structure with fewer voids, which is essential for load distribution.
• Verify Compliance:The grading of the material should meet MORTH Section 400 specifications, ensuring that the aggregate composition is appropriate for road base construction.

Why Design Mix is Important: The design mix ensures the selection of an optimal blend of materials that will meet the grading requirements. By determining the proper proportion of coarse and fine aggregates, the mix guarantees efficient compaction, greater load-bearing capacity, and stability of the road. If the grading is too fine or too coarse, it can lead to problems such as poor compaction, lower strength, and excessive settlement under traffic load.

Procedure:

• Conduct sieve analysis as per IS 2720 Part 4:1985.
• Use standard sieves and record the percentage of material passing through each sieve.
• Compare the results with MORTH grading limits, which are designed to optimize compaction and performance.

1.2 Wet Impact Value of GSB Materials

Description: The wet impact value measures the toughness of the GSB aggregates when subjected to loading under wet conditions. This test is essential as it simulates the effect of moisture on the material’s strength and durability, particularly under traffic loadings in wet conditions.

Purpose of Testing:

• Assess Durability:This test helps determine whether the aggregates are durable enough to withstand traffic-induced stresses when saturated with water. Wet conditions can weaken aggregates, and the test ensures the material will not disintegrate under such conditions.
• Check Resilience:It ensures that the GSB material retains its strength and stability when exposed to moisture, thereby ensuring the road structure’s durability under varying weather conditions.

Why Design Mix is Important: In designing the mix, the aggregates are chosen based on their durability and ability to withstand impact under wet conditions. By ensuring that only tough and durable aggregates are used, the design mix guarantees that the material will maintain its integrity during adverse weather conditions and under heavy traffic loads.

Procedure:

• Conduct the test as per IS 2386 Part 4:1963.
• Soak aggregates to a saturated state and place them in the impact testing machine.
• Record the percentage of fines generated during the test, which indicates the toughness of the material.

1.3 Liquid Limit and Plastic Limit (Atterberg Limits) of GSB

Description: Atterberg limits are critical for determining the plasticity of fine aggregates. The liquid limit and plastic limit are used to define the moisture content boundaries between different soil states. These limits play a vital role in understanding how the material will behave under various conditions, especially when subjected to changes in moisture content.

Purpose of Testing:

• Evaluate Consistency:The liquid limit and plastic limit tests help determine whether the GSB material will become excessively plastic or soft when wet, which can negatively affect its stability and workability.
• Ensure Workability:The Atterberg limits ensure that the material will be workable during construction and will not become too soft or sticky, which can make compaction difficult.

Why Design Mix is Important: The design mix for GSB ensures that the proportions of fines are balanced so that the liquid and plastic limits are within acceptable ranges. A mix with excessive fines may lead to poor compaction, while insufficient fines can reduce the cohesiveness of the material. Therefore, the design mix ensures that the material is neither too plastic nor too dry.

Procedure:

• Conduct the tests as per IS 2720 Part 5:1985using Casagrande’s apparatus.
• Determine the liquid and plastic limits by measuring the moisture content at the boundary between liquid and plastic states, and calculate the plasticity index to assess the workability.

1.4 California Bearing Ratio (CBR) of GSB Materials

Description: The CBR test measures the material’s ability to withstand penetration under a standard load. The CBR value is an important indicator of the strength and suitability of subgrade and base materials in road construction. It provides an estimate of the material’s performance under traffic loads and its resistance to deformation.

Purpose of Testing:

• Assess Strength:CBR helps determine if the material has the required strength to support the upper layers of the pavement. A higher CBR value indicates better performance and higher load-bearing capacity.
• Ensure Compliance:The test ensures that the GSB material meets MORTH specifications for subgrade and base material strength.

Why Design Mix is Important: A proper design mix ensures that the right combination of materials results in an optimal CBR value. This value directly influences the thickness of the road layers and the overall structural performance. The design mix ensures the material can bear the required loads without excessive deformation or failure.

Procedure:

• Conduct tests as per IS 2720 Part 16:1987.
• Perform both soaked and unsoaked CBR tests, and calculate the CBR value from the load-penetration curves.

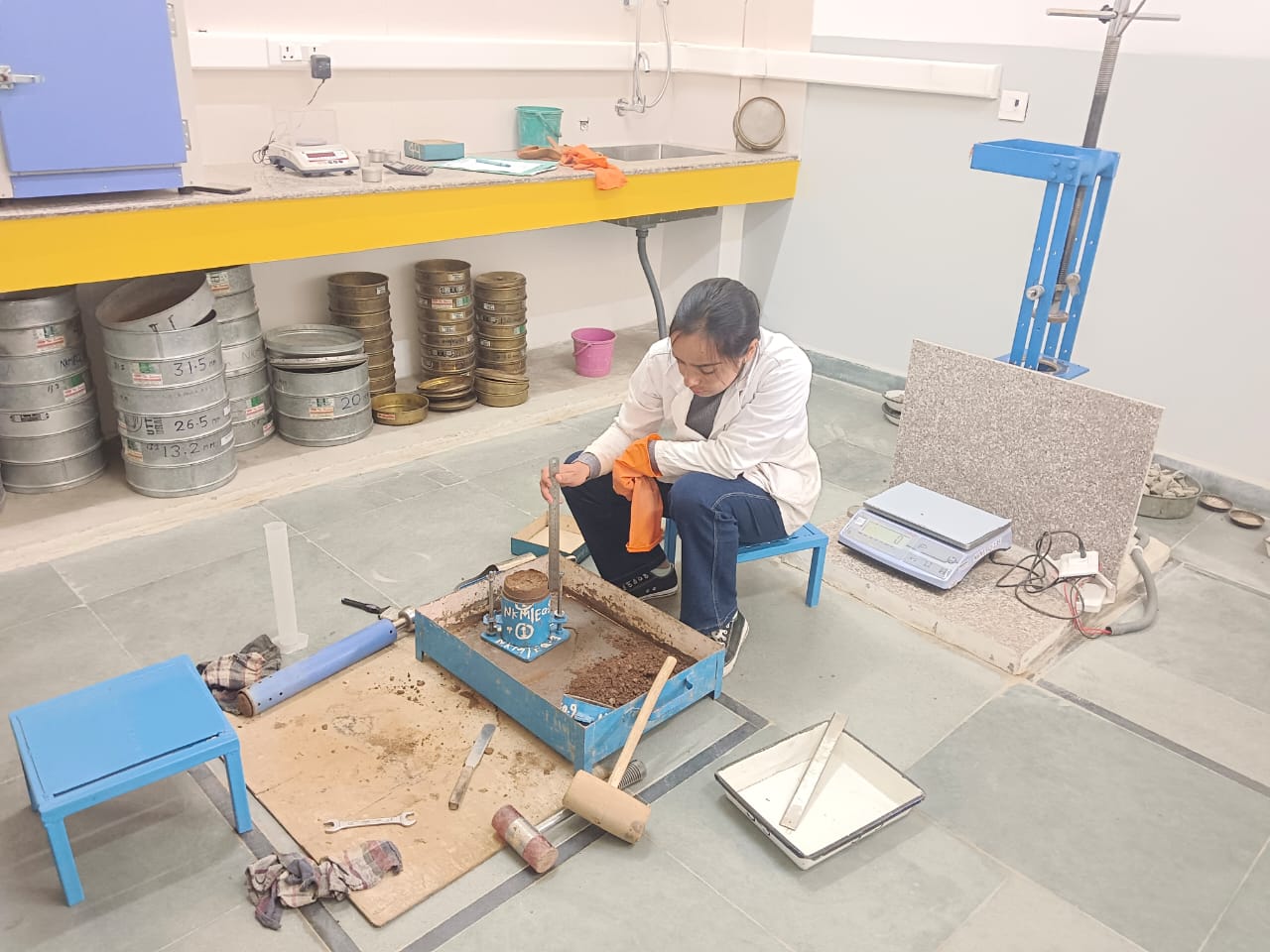

1.5 Water Content-Dry Density Relation of GSB Materials (Heavy Compaction)

Description: This test establishes the relationship between the moisture content of GSB material and its dry density under heavy compaction. It is crucial for determining the optimal moisture content that results in the highest dry density.

Purpose of Testing:

• Optimize Compaction:The main goal is to achieve maximum dry density by adjusting the water content. Proper compaction increases the material’s stability and load-bearing capacity.
• Ensure Stability:This ensures that the material has minimal voids and provides a solid foundation for the pavement.

Why Design Mix is Important: The design mix helps determine the optimal moisture content for compaction. When the correct moisture content is achieved, the GSB material can be compacted to its maximum dry density, leading to better stability and strength.

Procedure:

• Conduct tests as per IS 2720 Part 8:1983.
• Plot the water content versus dry density curve and find the optimum moisture content.

1.6 Water Absorption of GSB Materials

Description: Water absorption indicates the porosity of the GSB material. Aggregates with higher water absorption tend to be more porous, which can affect their durability and load-bearing capacity.

Purpose of Testing:

• Assess Durability:High water absorption indicates a more porous material, which may weaken the aggregate and make it more susceptible to weathering.
• Ensure Quality:The test ensures that the aggregates used in the GSB mix are durable and meet MORTH specifications.

Why Design Mix is Important: The design mix ensures that the aggregates selected for GSB have low water absorption, improving the material’s overall durability and resistance to weathering. This leads to increased service life and better performance of the road.

Procedure:

• Perform tests as per IS 2386 Part 3:1963.
• Calculate the water absorption percentage based on the dry weight of the aggregates.

1.7 Water Content of GSB Materials

Description: The water content of GSB material refers to the moisture present in the material, which affects its compaction and strength.

Purpose of Testing:

• Ensure Proper Compaction:To ensure the right moisture content for proper compaction during construction.
• Monitor Material Quality:Ensures the material does not have excess moisture that could reduce its strength or make it difficult to handle during construction.

Why Design Mix is Important: The design mix ensures that the water content is carefully controlled. Too much water can lead to poor compaction and a reduction in strength, while too little water may result in a dry and unstable material that is difficult to compact effectively.

Procedure:

• Use oven drying as per IS 2720 Part 2:1973.
• Record the difference in weight before and after drying to calculate the water content.

1.8 Job Mix Formula (JMF) for GSB Materials

Description: The Job Mix Formula (JMF) specifies the proportions of aggregates to achieve the desired grading and performance characteristics. It is the result of trial mixes performed under controlled conditions.

Purpose of Testing:

• Optimize Composition:The JMF ensures that the right blend of coarse and fine aggregates meets the required grading limits for optimal performance.
• Ensure Consistency:By standardizing the mix, the JMF ensures uniform quality and performance across different batches of material.

Why Design Mix is Important: The design mix ensures that the material composition adheres to the required standards for strength, durability, and stability. Trial mixes are conducted to determine the best proportions of materials, which are then used to create a consistent, high-quality mix for road construction.

Procedure:

• Combine materials according to MORTH Table 400-1.
• Perform trial mixes and adjust proportions to meet the grading and performance limits.

Section 2: Wet Mix Macadam (WMM)

2.1 Grading of WMM Materials

Description: Grading for WMM materials refers to the particle size distribution, which impacts compaction and load transfer. Proper grading is necessary for effective interlocking of particles, which enhances compaction and stability.

Purpose of Testing:

• Ensure Gradation:Grading ensures that the material achieves optimal density and strength after compaction.
• Verify Compliance:Ensures that WMM material meets MORTH Section 406 specifications for road construction.

Why Design Mix is Important: A proper design mix ensures that the WMM material is composed of the right proportions of fine and coarse aggregates to achieve the desired grading. This grading is vital for achieving optimal compaction and maximizing the load-bearing capacity of the WMM layer.

Procedure:

• Perform sieve analysis as per IS 2720 Part 4:1985.

Conclusion

Conclusion

The design mix of Granular Sub Base (GSB) and Wet Mix Macadam (WMM) materials is a critical aspect of road construction that directly impacts the strength, durability, and longevity of the pavement structure. By employing a systematic and scientific approach to material selection, mix design, and rigorous testing, we can ensure that the road structure is robust and capable of withstanding the various stresses imposed by traffic loads and environmental conditions.

Each test conducted for GSB and WMM serves a specific purpose, from ensuring proper grading and compaction to assessing the impact of moisture, toughness, and plasticity. The various procedures, based on Indian Standard (IS) codes and Ministry of Road Transport and Highways (MORTH) specifications, provide a standardized method to evaluate and control the quality of materials used in road construction. Adhering to these specifications guarantees that the materials meet the required standards and perform optimally under real-world conditions.

The significance of the Job Mix Formula (JMF) for both GSB and WMM cannot be overstated. The JMF is essential in determining the ideal combination of materials to achieve the desired performance criteria, such as proper compaction, high strength, minimal voids, and resistance to weathering. Through trial mixes and the careful calibration of proportions, the JMF ensures consistency and uniformity in material quality, which is crucial for maintaining the overall integrity of the road structure.

Moreover, tests such as the California Bearing Ratio (CBR), impact value, and water absorption not only reflect the load-bearing capacity and resilience of the materials but also shed light on the material’s long-term performance. By understanding how the material behaves under different moisture conditions and loading scenarios, engineers can make informed decisions regarding the design and construction of the road.

It is also important to recognize the role of compaction in ensuring that the GSB and WMM layers achieve maximum density. Proper compaction minimizes voids, enhances strength, and improves the road’s ability to resist deformation. By achieving the correct balance of water content, aggregate size, and compaction efforts, the road foundation can be optimized for long-term performance.

The overall goal of the design mix process is to achieve a stable, resilient, and cost-effective road foundation. The proper combination of materials, informed by detailed tests, ensures that the GSB and WMM layers are not only suitable for bearing traffic loads but also capable of withstanding the effects of moisture, temperature changes, and other environmental factors. This results in a road that performs reliably over an extended period, reducing the need for frequent maintenance and repairs.

In conclusion, the process of designing the mix for GSB and WMM is indispensable for the success of road construction projects. Through meticulous testing, adherence to standards, and optimization of material properties, we can achieve roads that are durable, safe, and able to withstand the challenges posed by modern traffic demands. By prioritizing quality in the design mix, road construction engineers play a vital role in contributing to the infrastructure that supports economic development, safety, and the well-being of communities. Therefore, the thorough evaluation and testing of GSB and WMM materials are not just a regulatory requirement but an investment in the long-term performance of the nation’s road network.

Incorporating innovative technologies and continuously improving mix designs, while adhering to evolving standards, will further enhance the sustainability and performance of future road projects. The focus on quality materials, proper testing, and a scientifically driven design mix will continue to serve as the cornerstone of road construction, leading to roads that are not only efficient and durable but also sustainable in the face of changing environmental and traffic conditions.

References:

• IS 2720 Part 2:1973
• IS 2720 Part 4:1985
• IS 2720 Part 5:1985
• IS 2720 Part 8:1983
• IS 2386 Part 1:1963
• IS 2386 Part 3:1963
• IS 2386 Part 4:1963
• IS 2386 Part 5:1963
• MORTH Specifications, Section 400, 406
