Design mix of CTB and CTSB layer

1. Introduction to CTB and CTSB

Cement Treated Base (CTB) and Cement Treated Subbase (CTSB) are foundational components in road construction. These are both used as intermediate layers, placed between the subgrade (the natural ground) and the surface layers (such as asphalt or concrete). These layers are created by mixing aggregates (such as sand, gravel, or crushed stone) with cement and water to form a solid, durable structure. Both CTB and CTSB are vital for the stability and longevity of pavements, providing resistance against deformation, cracking, and damage due to traffic loads, environmental conditions, and weathering processes.

The increasing demand for durable and sustainable road infrastructure has led to the widespread use of cement-treated materials in road construction. CTB and CTSB provide a superior solution to traditional untreated aggregate bases by improving the structural performance of road systems, especially in areas where subgrades are weak or subject to moisture variation.

2. Understanding the Materials Used in CTB and CTSB

Aggregates are the primary components that make up both CTB and CTSB. The aggregates, both coarse and fine, are mixed with cement and water to create a durable mixture. Aggregates come in various sizes and types, and the specific mix used depends on the desired strength and durability of the treated base.

• Coarse Aggregates: Coarse aggregates typically include materials like crushed stone, gravel, and crushed concrete. They provide the structural framework that gives CTB and CTSB their strength. These aggregates should be durable, resistant to weathering, and free from clay, silt, or organic materials.
• Fine Aggregates: Fine aggregates are made up of sand or crushed stone fines, which fill the voids between coarse aggregates. The proper proportion of fine aggregates helps improve the workability and compaction of the mix.
• Cement: The primary binding agent in CTB and CTSB is Ordinary Portland Cement (OPC). This type of cement is widely used in construction due to its strong binding properties. The cement is mixed with water to form a paste that bonds the aggregates together. The cement content in the mix is typically around 3% to 8% of the dry weight of aggregates for CTB, and 2% to 6% for CTSB. The specific cement content depends on the traffic load, soil conditions, and the performance requirements of the road.
• Water: Water plays a critical role in the cement hydration process. The water-cement ratio (the ratio of the weight of water to the weight of cement) influences the strength and durability of the mixture. A typical water-cement ratio for CTB and CTSB ranges between 0.4 to 0.5. Proper water content is essential to activate the cement and ensure that the aggregates bond effectively.

These materials are mixed in specific proportions to form the required layers, which are then spread and compacted on-site to create a stable, durable foundation for road pavements.

3. The Design Mix of CTB and CTSB

The design mix of CTB and CTSB refers to the proportion of materials (aggregates, cement, and water) used to create the treated base and subbase layers. The mix is designed to achieve a specific compressive strength, workability, and durability that meet the demands of the road project.

CTB Mix Design

In the case of CTB, the mix design aims to ensure that the base layer can effectively support the pavement, distribute traffic loads, and prevent deformation. The proportion of cement in CTB is generally between 3% and 8% by weight of the dry aggregates. However, the cement content can be adjusted based on factors like soil conditions, traffic loads, and climate.

• Proportions: A typical mix ratio for CTB could be 7% cementby weight of the dry aggregates. This percentage can be adjusted according to the performance requirements.
• Water-Cement Ratio: The water-cement ratio must be balanced to allow adequate hydration of the cement while ensuring the mix is not too wet or too dry. A ratio of 0.4 to 0.5 is commonly used for CTB mixes. A lower water-cement ratio leads to higher strength, but it also reduces workability.

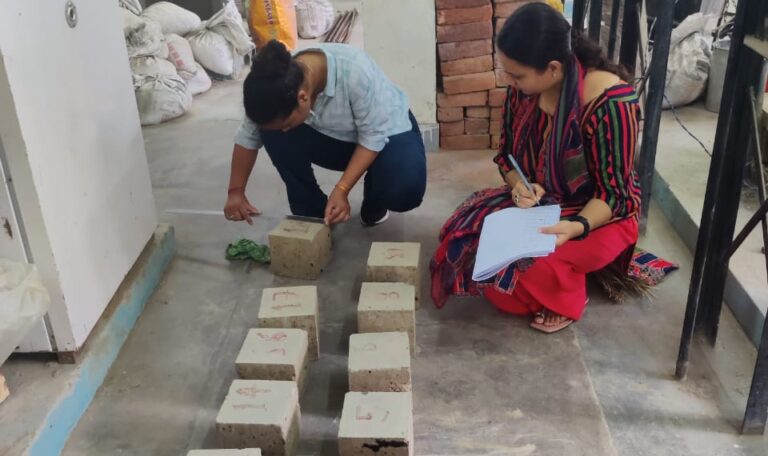

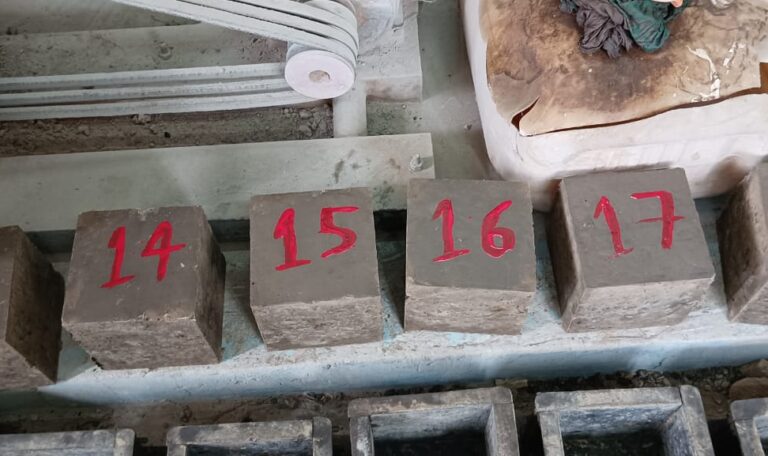

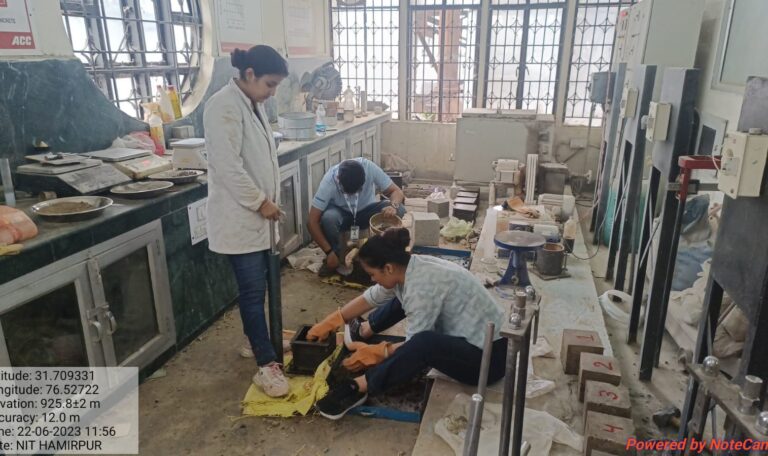

• Compressive Strength: After mixing, the material is allowed to cure for 7 days and 28 days, and its compressive strength is tested. For CTB, the typical compressive strength after 28 days is between 6 to 8 MPa (870 to 1160 psi). This strength is crucial for supporting heavy traffic loads over time.

CTSB Mix Design

CTSB is designed similarly to CTB but with a slightly lower cement content since the subbase layer does not bear as much traffic load as the base layer. The cement content in CTSB is typically between 2% and 6% by weight of dry aggregates, depending on subgrade conditions and project requirements.

• Proportions: The proportion of cement is reduced in CTSB compared to CTB because its primary role is to support the base layer rather than directly bear traffic loads.
• Water-Cement Ratio: Similar to CTB, the water-cement ratio is critical for ensuring adequate hydration and workability. For CTSB, the ratio is often similar or slightly lower than that for CTB to ensure compaction and bonding.
• Compressive Strength: After curing for 7 days and 28 days, the compressive strength of CTSB should be sufficient to support the CTB layer and prevent shifting under load. A typical target compressive strength is around 4.5 to 5 MPa (650 to 725 psi) after 28 days of curing.

4. Benefits of CTB and CTSB

The use of CTB and CTSB offers a range of benefits for road construction, particularly in areas with challenging soil conditions or high traffic loads.

Strength and Durability

Cement-treated materials provide substantial strength and stability to roads. The chemical bonding between cement and aggregates results in a solid mass that can withstand compression and shear forces. This makes CTB and CTSB highly resistant to deformation, cracking, and erosion under the pressure of traffic loads and environmental conditions.

• Load-Bearing Capacity: CTB and CTSB improve the load-bearing capacity of the pavement by distributing the weight of traffic over a larger area. This prevents localized deformation or cracking and ensures a longer lifespan for the road.
• Resistance to Moisture: One of the key advantages of cement treatment is its ability to reduce the permeability of the base and subbase layers. Cement-treated materials are less susceptible to water penetration, which helps prevent erosion, frost heave, and weakening of the road structure, particularly in wet climates.

Cost-Effectiveness

Although the initial construction cost of cement-treated layers may be higher than untreated aggregate bases, the long-term cost savings make it a viable option. The increased durability and reduced maintenance needs of CTB and CTSB layers lead to lower overall costs for road maintenance and repair over the life of the road.

• Long Lifespan: Roads constructed with CTB and CTSB can last for many years without the need for frequent repairs or rehabilitation. This makes them ideal for high-traffic areas, reducing the need for costly resurfacing projects.

Improved Subgrade Stabilization

In regions with weak or expansive soils, the subgrade may be prone to shifting, erosion, or collapse. By using CTB or CTSB, the subgrade can be stabilized, preventing the foundation from shifting under traffic loads. This stabilization is achieved by mixing cement into the subgrade or applying a cement-treated subbase layer.

Crack Resistance and Flexibility

The cement-treated layers are less likely to crack or deform over time, which ensures the road remains smooth and safe for vehicles. With proper compaction and curing, both CTB and CTSB layers exhibit excellent crack resistance, even under extreme temperature fluctuations.

5. Uses of CTB and CTSB

Both CTB and CTSB are used in various road construction applications, depending on traffic load, subgrade conditions, and the desired performance of the road.

CTB Layer Uses

CTB serves as the base layer of a road, directly above the subgrade or CTSB. Its role is to provide structural support, distribute traffic loads, and create a stable foundation for the surface layers of the pavement.

• High-Traffic Roads: CTB is ideal for highways, expressways, and major urban roads that carry heavy traffic volumes. The increased cement content provides the strength needed to support these high-traffic areas.
• Roads in Wet or Freezing Climates: In regions where the subgrade is prone to erosion or freezing, CTB acts as a moisture-resistant barrier, preventing water infiltration and ensuring that the pavement structure remains intact.
• Rural and Secondary Roads: In areas with weak subgrade conditions, CTB provides an essential reinforcement, improving the overall stability and longevity of the road.

CTSB Layer Uses

CTSB is used as the subbase layer, positioned beneath the CTB to provide additional stability and load distribution. It is particularly useful in areas with poor subgrades or where a higher-strength base layer is required.

• Support for CTB: CTSB provides additional support to the CTB, helping distribute loads to the underlying subgrade.
• Low-Traffic Roads: For roads with lower traffic volumes, CTSB may be sufficient as the main stabilizing layer beneath the pavement, reducing the need for expensive materials like CTB.
• Weak Subgrades: In areas where the subgrade is unstable, the use of CTSB helps prevent rutting, settlement, and deformation caused by traffic loads.

6. Construction Process for CTB and CTSB

The construction of CTB and CTSB involves several key stages, including mixing, spreading, compaction, and curing. Proper execution of these steps is essential to achieving the desired strength and durability of the road.

Mixing

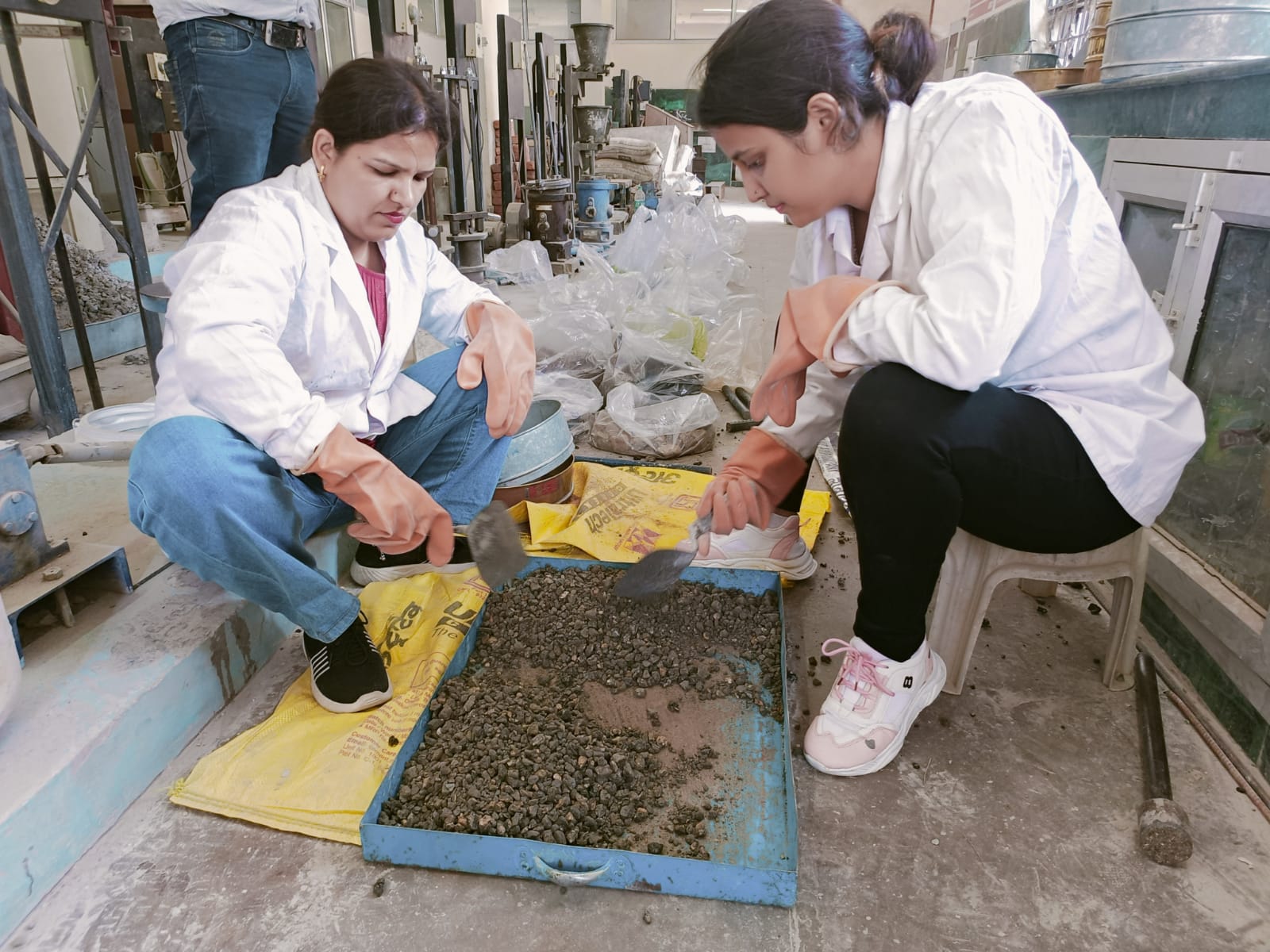

The aggregates, cement, and water are thoroughly mixed at a central mixing plant or on-site. The cement is carefully blended with the aggregates to ensure uniform distribution. The water is then added to activate the cement and form a workable mixture. The mix must be checked for consistency and adjusted as necessary to achieve the correct moisture content.

Spreading

The mixture is transported to the construction site and spread evenly over the subgrade or existing subbase. The thickness of the layer depends on the design specifications but typically ranges between 4 to 6 inches (100 to 150 mm).

Compaction

After spreading, the material is compacted using mechanical rollers to achieve the required density and strength. Compaction is critical to ensuring that the material reaches its full load-bearing capacity and that the layer is uniform in thickness and strength.

Curing

Once the material is compacted, it is allowed to cure for several days, typically 7 to 28 days. Curing is essential to allow the cement to fully hydrate and bond with the aggregates, ensuring that the mixture reaches its maximum strength.

7. Challenges and Limitations

Despite the many benefits of CTB and CTSB, there are several challenges that must be considered during the design and construction processes.

• Variability in Materials: The quality of aggregates and cement can vary, which may affect the final strength and durability of the treated layers. It’s essential to perform material testing before use.
• Weather Conditions: Adverse weather, such as heavy rain or extreme heat, can delay the curing process or affect the moisture content of the mixture.
• Initial Cost: The initial costs of cement-treated materials may be higher than untreated aggregate bases due to the additional costs of cement, mixing, and compaction. However, these costs are offset by the reduced maintenance and longer lifespan of the road.

8. Conclusion

CTB and CTSB are essential materials for creating durable, strong, and cost-effective road foundations. These cement-treated layers provide a stable base and subbase that improves the longevity and performance of roads. With their ability to withstand heavy traffic, resist moisture damage, and stabilize weak soils, CTB and CTSB are invaluable tools in modern road construction. By optimizing the mix design and ensuring proper construction techniques, engineers can maximize the benefits of these materials, leading to smoother, more reliable roads that serve communities for decades.

9. Advanced Construction Methods for CTB and CTSB

The construction of Cement Treated Base (CTB) and Cement Treated Subbase (CTSB) involves advanced techniques to ensure that the material mixture meets the required engineering specifications. There are several construction methods commonly used to lay down these materials. Each method is selected based on the project’s scale, traffic demands, site conditions, and local material availability.

Central Plant Mixing Method

In the central plant mixing method, the materials (aggregates, cement, and water) are mixed in a central facility, ensuring uniformity and quality control. The mixture is then transported to the site for spreading and compaction. This method is ideal for large-scale projects, such as highways, where quality and consistency are critical. The mixture is carefully monitored to ensure that the proportions of cement, aggregates, and water are maintained within the specified limits.

1. Advantages: The central mixing process allows for precise control over the mix proportions and ensures that the final product meets the desired strength and durability standards.
2. Applications: This method is most commonly used in large road projects, such as highways, expressways, and urban roads with heavy traffic loads.

In-Situ Mixing Method

The in-situ mixing method involves mixing the materials directly on the construction site. This process is typically done using a rotary mixer or a pulverizer that combines the cement, aggregates, and water into a uniform mix. This method is more cost-effective for smaller projects or for projects in remote locations where transporting the mixture from a central plant may be logistically challenging.

1. Advantages: In-situ mixing is less expensive as it does not require transport of the mixture, making it suitable for small-scale or rural road projects.
2. Applications: This method is often used for rural roads, smaller highways, and local road networks where construction costs need to be minimized, and the area is difficult to access.

Dry Mixing and Wet Mixing

• Dry Mixing: In dry mixing, aggregates and cement are combined in their dry form, and water is added later to activate the cement and achieve the desired hydration. This method is suitable for regions with dry climates where there is less risk of rainfall during the construction phase.
• Wet Mixing: In wet mixing, water is added during the mixing phase to activate the cement. Wet mixing is preferred in areas with high humidity or where moisture retention is crucial for optimal cement hydration. This method often provides better consistency in the mix.

10. Factors Affecting the Performance of CTB and CTSB

The performance of Cement Treated Base (CTB) and Cement Treated Subbase (CTSB) can be influenced by several factors, ranging from material properties to environmental conditions. Engineers must take these factors into account during both the design phase and the construction process to ensure the long-term stability of the road.

1. Aggregate Quality and Gradation

The type and quality of aggregates used in the CTB and CTSB mixtures play a crucial role in determining the final strength and durability of the treated layers. The aggregates should be free of contaminants such as clay, organic materials, and silt, as these can adversely affect the bonding between the cement and the aggregates.

• Gradation: The particle size distribution (gradation) of the aggregates is essential for achieving proper compaction and strength. Well-graded aggregates ensure better interlocking between particles, reducing the potential for cracking and deformation.
• Coarse Aggregates: Coarse aggregates should be durable and provide the required structural stability to the treated base layer. The rougher texture of the aggregates helps improve bonding with the cement.

2. Cement Content and Water-Cement Ratio

The cement content directly influences the strength of the CTB and CTSB layers. Too little cement results in a weak structure, while excess cement may lead to unnecessary costs and reduced workability. Achieving the correct water-cement ratio is equally important, as it affects the hydration of the cement and the overall compaction of the mixture.

• Optimal Cement Content: For CTB, a cement content of 7% to 8% is often used to provide high strength, while for CTSB, the cement content is typically between 3% and 5%. However, the exact amount is determined based on local material conditions and the required performance.

3. Curing Process

Curing is one of the most critical stages in the construction of CTB and CTSB layers. Proper curing ensures the full hydration of the cement and helps achieve the required compressive strength. Insufficient curing can result in weak, cracked surfaces, compromising the road’s long-term performance.

• Curing Methods: Different curing methods include water curing (using sprinklers or ponds), curing compounds (chemical agents that retain moisture), and covering with tarpaulins or plastic sheets to reduce moisture loss. The curing duration typically lasts 7 to 28 days, with longer curing periods resulting in higher strength and durability.

4. Climate and Environmental Conditions

Environmental conditions, particularly temperature and moisture levels, can significantly affect the quality and performance of cement-treated layers. Extreme temperatures (either too hot or too cold) can interfere with the hydration process of cement, leading to uneven strength development.

• Hot Climates: In hot climates, the mixture must be watered frequently to prevent rapid drying and to maintain the correct moisture content. Additionally, it may be necessary to add retarders to slow the setting time.
• Cold Climates: In cold regions, construction during the winter months can be challenging. The use of heated materials or accelerators may be necessary to ensure that the cement hydrates properly. Insulating blankets or temporary shelters can also help maintain the proper curing conditions.

11. Maintenance and Repair of CTB and CTSB Layers

One of the significant advantages of CTB and CTSB is their low maintenance requirement. However, like all infrastructure, these layers may still require some degree of maintenance or repair over time.

Routine Inspections

Regular inspections are essential to detect early signs of distress in the CTB and CTSB layers. Engineers typically perform the following types of inspections:

• Crack Monitoring: Fine surface cracks may develop over time, especially if the curing process was not sufficient. These cracks should be monitored and repaired promptly to avoid further damage.
• Pavement Deflection Testing: This test measures the deflection of the pavement under load to evaluate the structural integrity of the treated base and subbase layers.
• Surface Condition Assessment: Assessing the condition of the surface helps determine if rutting, potholes, or any other distress has developed. Immediate action may be needed to repair damaged sections.

Repairs and Rehabilitation

While CTB and CTSB layers are durable, repairs may be necessary under the following conditions:

1. Localized Damage: In areas where there is significant traffic-induced damage or excessive moisture infiltration, localized repairs such as patching may be required.
2. Resurfacing: If the road surface begins to show signs of wear or failure, resurfacing with asphalt or concrete may be necessary. However, the underlying CTB or CTSB layers usually remain intact, reducing the need for complete reconstruction.
3. Re-cementing: In cases where the cement content of the treated layers has degraded or cracks have become widespread, the road may require additional cement treatment or re-cementing to restore its structural integrity.

12. Sustainability and Environmental Impact

In addition to providing durable and long-lasting road infrastructure, the use of Cement Treated Base (CTB) and Cement Treated Subbase (CTSB) layers offers several environmental benefits. These benefits contribute to the sustainability of road construction and help reduce the overall environmental footprint of such projects.

Recycling of Materials

The ability to use recycled aggregates in the cement-treated layers is an important aspect of sustainability. By incorporating reclaimed asphalt pavement (RAP) or recycled concrete aggregates (RCA) into the mix, the demand for virgin materials can be reduced, leading to lower environmental impact. Additionally, this practice helps reduce the volume of construction waste that ends up in landfills.

• Recycling in Road Construction: Using recycled aggregates in CTB and CTSB is a growing trend, particularly in urban areas where construction waste is abundant. This method not only conserves natural resources but also reduces transportation costs and energy consumption.

Carbon Footprint Considerations

Although cement production is energy-intensive and has a relatively high carbon footprint, the use of cement-treated materials can still offer long-term environmental benefits. The durability and longevity of CTB and CTSB layers mean that fewer road repairs and reconstructions are needed, which ultimately reduces the amount of energy and resources required for road maintenance.

Moreover, ongoing research into low-carbon cement and sustainable cement alternatives (such as fly ash or slag-based cements) is helping reduce the environmental impact of cement production.

13. Future Trends in CTB and CTSB Technologies

The field of road construction is evolving, and innovations are being made to further improve the performance, sustainability, and cost-effectiveness of CTB and CTSB. Key trends that are shaping the future of cement-treated base and subbase layers include:

1. Smart Cement and Self-Healing Materials: Researchers are exploring the use of smart cement, which can detect cracks and repair them autonomously. This technology could significantly extend the lifespan of roads built with CTB and CTSB.
2. Sustainability Practices: The use of alternative materials and eco-friendly additives is being incorporated into cement-treated layers to further reduce environmental impacts.
3. Enhanced Mix Designs: Advances in material science are leading to the development of more optimized and customized mix designs that improve the strength, durability, and cost-effectiveness of CTB and CTSB.

14. Conclusion

Cement Treated Base (CTB) and Cement Treated Subbase (CTSB) layers are integral to modern road construction. These materials offer a sustainable, cost-effective solution for improving the durability and load-bearing capacity of roads. By using high-quality materials, advanced mixing techniques, and optimized mix designs, engineers can create stable and long-lasting road foundations that withstand the rigors of heavy traffic and environmental stresses.

As the demand for high-performance, durable roads continues to rise, the application of CTB and CTSB will play a crucial role in ensuring that road infrastructure is resilient, sustainable, and cost-effective. With continuous advancements in material technology and construction techniques, the future of cement-treated layers in road construction looks promising, contributing to the development of safer, more reliable transportation networks worldwide.
