Concrete Core and Concrete Cube Testing

1. Introduction

Concrete has been one of the most widely used materials in construction due to its affordability, versatility, and durability. Its ability to withstand compressive forces makes it ideal for a range of applications, from residential buildings to infrastructure projects such as bridges, dams, and highways. The primary measure of concrete’s ability to resist compressive forces is its compressive strength. This strength is essential for determining the concrete’s suitability for load-bearing structures.

Testing the compressive strength of concrete is an essential part of quality control in construction. There are two major testing methods to determine this strength:

1. Concrete Cube Testing: This is typically done with fresh concrete and is a standardized method to test the concrete’s quality during the mixing and casting phase.
2. Concrete Core Testing: This is used for assessing the strength of hardened concrete, particularly for structures already in place, especially when there is a need to evaluate the quality of in-situ concrete after curing.

This detailed report outlines both methods, their significance, testing procedures, benefits, and references to Indian Standard (IS) codes that guide these practices. By exploring both of these methods in-depth, we can better understand the importance of each and their roles in the construction process.

2. Compressive Strength of Concrete Cube

2.1. Overview of Concrete Cube Testing

Concrete cube testing is one of the most widely accepted and standard methods for evaluating the compressive strength of concrete. It is typically performed on freshly mixed concrete before it sets, which allows for quality control during the mixing and casting process. The test involves casting concrete into cube-shaped molds and then subjecting the cured cubes to a compressive load until failure. The strength is determined by the maximum load the concrete can bear before crumbling or fracturing.

In concrete construction, achieving the desired compressive strength is critical, as it determines the concrete’s ability to withstand the stresses and loads it will encounter in service. Testing concrete cubes ensures that the concrete mix is designed correctly and that the final product will meet the required structural standards.

2.2. Detailed Procedure for Concrete Cube Testing

Concrete cube testing involves several steps, which are crucial to ensuring the accuracy and reliability of the test results. Here is a detailed breakdown of the procedure:

1. Preparation of the Concrete Mix:

• The first step is to prepare the concrete mix. The mix proportions of cement, aggregates (fine and coarse), water, and any additives are carefully designed based on the structural requirements and the desired strength. These proportions should be determined using a suitable mix design method, such as the IS 10262:2009 for normal concrete mixes or IS 456:2000 for reinforced concrete.
• During mixing, the materials should be thoroughly combined to achieve a uniform consistency and prevent segregation.
  2. Casting the Concrete Cubes:
• The fresh concrete is poured into standard 150 mm x 150 mm x 150 mm steel or non-corrosive molds, which are cleaned and oiled beforehand to ensure smooth removal after curing.
• Concrete is poured in layers and compacted to remove air bubbles, which could affect the results. This is typically done with a vibrating table or hand compaction for smaller quantities of concrete.
• The molds are filled to the top, and the concrete is leveled off, ensuring that the surface is smooth and even.
  3. Curing of Concrete Cubes:
• After the cubes are cast, they need to be properly cured to allow the cement to hydrate and harden. Curing is essential because it directly influences the strength and durability of the concrete.
• The cubes are initially kept in a temperature-controlled room or environment at 20°C to 25°C for 24 hours. This ensures the initial setting process occurs effectively.
• After 24 hours, the cubes are demolded, and they are submerged in water at 20°C until the test date. The cubes are usually cured for a minimum of 7 days, with 28 days being the standard curing time for most concrete mixes, which corresponds to the time required for full hydration of the cement.
  4. Compression Testing:

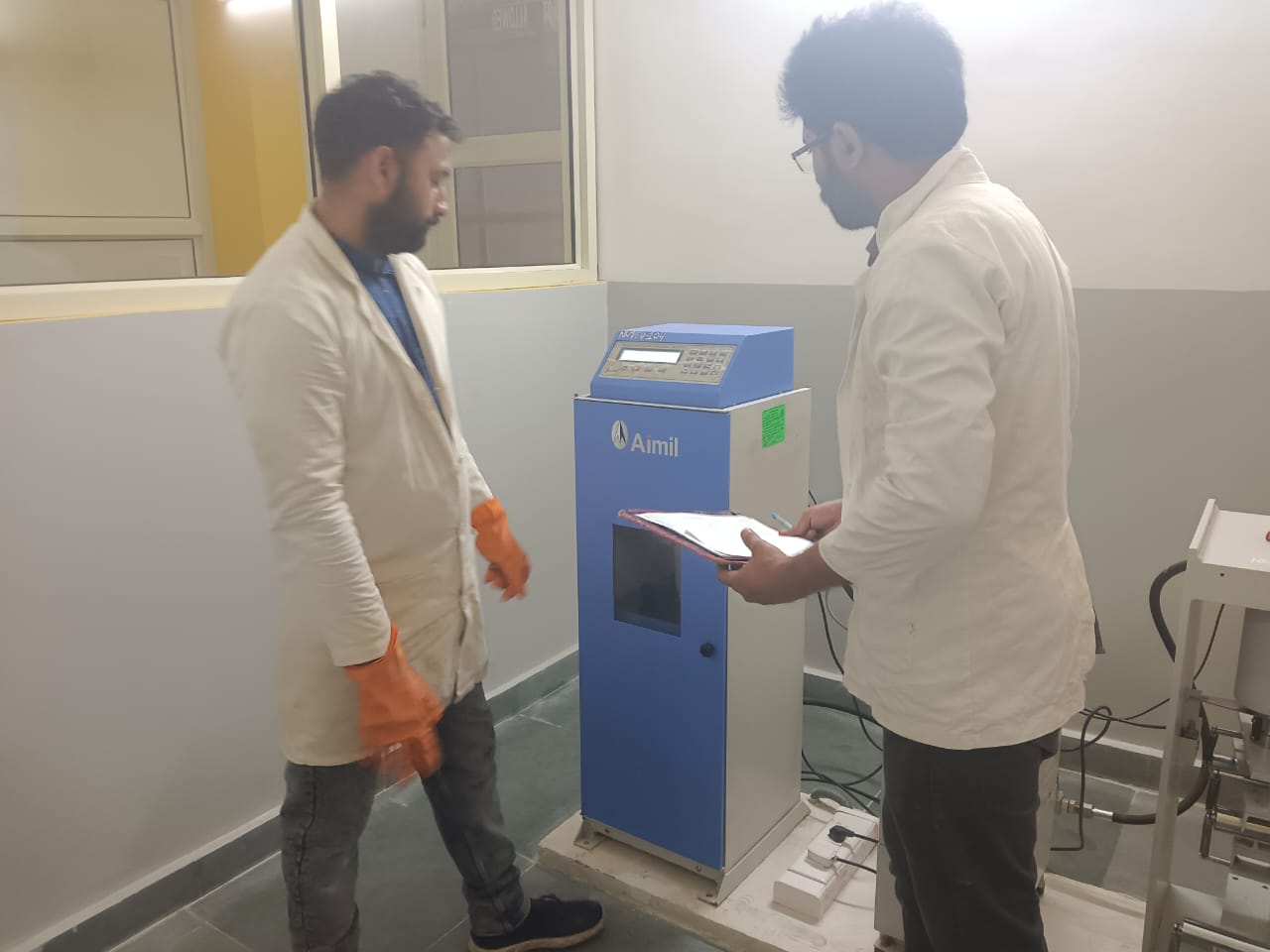

• After curing, the concrete cubes are subjected to compression testing using a Compression Testing Machine (CTM). The cube is placed in the machine so that the load is applied centrally, and a gradually increasing force is applied until the cube fails.
• The maximum load at failure is recorded, and the compressive strength is calculated using the formula:

fck=PAf_{ck} = \frac{P}{A}fck​=AP​

where:

• PPP is the load at failure in Newtons (N),
• AAA is the cross-sectional area of the cube face in square millimeters (mm²).

The strength is generally expressed in megapascals (MPa) or Newton per square millimeter (N/mm²).

2.3. IS Code Reference for Concrete Cube Testing

The Indian Standards governing concrete cube testing are as follows:

• IS 516:1959: “Methods of Tests for Strength of Concrete” provides the detailed procedures for conducting concrete strength tests, including cube testing.
• IS 1199:1959: “Methods of Sampling and Analysis of Concrete” outlines the appropriate methods for taking concrete samples and preparing the specimens for testing.
• IS 455:1989: “Code of Practice for Plain and Reinforced Concrete” includes guidance on ensuring that concrete meets the desired strength requirements for plain and reinforced concrete structures.

These codes ensure uniformity in concrete testing practices and help maintain the reliability of the test results.

2.4. Benefits of Concrete Cube Testing

The importance of concrete cube testing lies in its ability to ensure the quality and reliability of the concrete used in construction. The key benefits of concrete cube testing include:

• Quality Control: Cube testing provides an essential check on the concrete quality, ensuring that the mix proportions, curing conditions, and handling processes are correct.
• Compliance with Design Requirements: By testing concrete before or during construction, engineers can confirm that the concrete meets the compressive strength specified in the design, which ensures the structural safety of the project.
• Predicts the Performance of Concrete: The compressive strength obtained from cube tests helps engineers predict how the concrete will perform when subjected to real-world loading conditions, such as during service or extreme environmental conditions.
• Early Detection of Potential Issues: If the concrete does not meet the expected strength, cube testing can detect this issue early, which helps avoid major structural failures later on.
• Standardized and Cost-effective: Cube testing is simple, widely understood, and standardized, making it one of the most cost-effective methods of quality control.

3. Compressive Strength of Concrete Core

3.1. Overview of Concrete Core Testing

Concrete core testing is used to evaluate the strength of hardened concrete, typically for assessing the compressive strength of concrete in existing structures. This method is especially useful when concrete cube tests indicate that the concrete may not meet the required strength, or when core samples are needed to determine the in-situ strength of concrete in the field.

Concrete cores are cylindrical samples taken from the structure using a core drilling technique. The extracted cores are then tested in the same way as cubes to determine the compressive strength of the material. Since cores are extracted from existing structures, this method provides a direct, real-world assessment of concrete strength.

3.2. Detailed Procedure for Concrete Core Testing

The procedure for testing concrete cores involves the following steps:

1. Core Extraction:

• A diamond-tipped drillis used to extract cylindrical cores from the concrete structure. The diameter of the core is typically 75 mm to 100 mm, and its length should be at least twice its diameter.
• It is important to extract the cores from the correct location in the structure, as areas with defects, such as cracks or honeycombing, should be avoided to prevent skewed results.
  2. Preparation of the Core Sample:
• After extraction, the core is cleaned thoroughly to remove any dirt or debris that could affect the test results.
• If necessary, the core is trimmed to ensure that the ends are flat and perpendicular to the axis of the core to ensure an accurate and consistent measurement of strength.
  3. Compression Testing:
• The prepared core is placed in a Compression Testing Machine (CTM). The machine applies an increasing compressive load until the core fails.
• The maximum load at failure is recorded, and the compressive strength is calculated using the formula:

fcc=PAf_{cc} = \frac{P}{A}fcc​=AP​

where:

• fccf_{cc}fcc​ is the compressive strength of the core (in N/mm² or MPa),
• PPP is the applied load at failure (in Newtons),
• AAA is the cross-sectional area of the core (in mm²).

4. Correction Factor:

• If the core is shorter than twice its diameter, a correction factor may be applied to the compressive strength value to account for any inaccuracies caused by the aspect ratio of the core.

3.3. IS Code Reference for Concrete Core Testing

Indian Standard codes governing core testing include:

• IS 516:1959provides detailed procedures for testing the compressive strength of cores.
• IS 1199:1959outlines the methods for core sampling and preparation.
• IS 3370-2:2009provides guidance for core testing in applications involving liquid storage structures, such as tanks and silos.

These standards ensure that core testing is performed according to uniform practices and guarantees the accuracy and reliability of test results.

3.4. Benefits of Concrete Core Testing

Concrete core testing is a crucial method for assessing the compressive strength and overall quality of hardened concrete in existing structures. While concrete cube testing is useful for fresh concrete, core testing is the go-to method when dealing with already constructed elements. Here are the key benefits of core testing:

1. Accurate In-Situ Strength Assessment

Core testing provides a direct, real-world measurement of the compressive strength of concrete within a structure. This is particularly important for evaluating the strength of older or existing structures where testing is needed to ensure the concrete meets required standards. Unlike cube tests, which estimate the strength of fresh concrete, core testing gives a precise value for the hardened concrete’s strength after it has been exposed to environmental factors, wear, and load stresses over time.

2. Verification of Concrete Quality

Core testing can confirm the actual strength of concrete used in existing structures. If concrete cube testing during construction showed lower-than-expected results, core testing can provide a more accurate representation of the concrete’s actual strength. This verification can be essential for safety assessments, especially in high-load or critical structures.

3. Detection of Concrete Defects and Inhomogeneities

Cores provide valuable insights into the uniformity and quality of the concrete within a structure. By extracting samples from different locations in the structure, core testing can identify defects such as:

• Cracksor voids in the concrete,
• Honeycombing(air pockets or poor compaction),
• Delamination(separation of layers of concrete),
• Deteriorationor chemical damage (such as corrosion of reinforcement).

Identifying these issues early enables engineers to plan for repairs or reinforcements.

4. Assessment of Concrete Durability and Integrity

In addition to compressive strength, core testing can help assess the overall durability of the concrete. For example, cores can be examined to determine the degree of carbonation, chloride ion concentration, or other factors that influence concrete’s long-term performance. This is particularly useful in structures exposed to harsh environments (e.g., marine structures, bridges, or industrial buildings).

5. Aid in Structural Rehabilitation and Repairs

When strengthening or retrofitting structures, core testing helps determine whether the existing concrete can handle the additional loads imposed by the new design. The results guide decisions about whether repairs or upgrades are necessary. Core testing can also inform repair methods by revealing specific areas that need attention, such as regions where the concrete strength has significantly reduced or where reinforcement may be compromised.

6. Time and Cost Efficiency for Existing Structures

While extracting concrete cores involves some cost, it is often more cost-effective than extensive sampling and destructive testing. For instance, core testing helps avoid unnecessary demolition or other invasive testing methods. Additionally, core samples can be extracted from specific areas suspected to be weaker, reducing the need for large-scale sampling.

7. Compliance with Safety Standards and Codes

Core testing ensures that the concrete in a structure complies with the safety standards and design specifications. It helps in ensuring that the structure is strong enough to support its intended loads, thereby preventing accidents or failures. In many cases, regulatory authorities or insurance companies require core testing to verify that a structure meets local building codes and safety standards.

8. Accurate Analysis for Life Cycle Assessment

For older structures or buildings nearing the end of their designed service life, core testing offers critical data that can be used in conducting life cycle assessments. By analyzing the condition and strength of the concrete, engineers can predict the remaining life expectancy of the structure and recommend maintenance or replacement schedules. This helps in budgeting for long-term maintenance and ensuring the safety of building occupants.

9. Documenting the Quality of Construction for Record Keeping

In some cases, core testing is used to document the quality of concrete construction for future reference. This is especially true for large-scale projects where verifying the quality of concrete throughout its service life may be necessary. Documenting core testing results can help engineers, architects, and owners keep a record of the structure’s original condition and any modifications or repairs made during its life cycle.

10. Facilitates Post-Construction Evaluation and Performance Monitoring

Core testing is particularly beneficial when assessing how a structure has aged over time. For buildings subjected to heavy use, environmental stressors, or heavy traffic (e.g., roads, bridges, and highways), periodic core tests can offer a picture of how well the concrete is performing and whether it is maintaining its strength and durability over time. This helps in planning long-term maintenance schedules to extend the service life of the structure.

11. Legal and Insurance Documentation

In cases of disputes over construction quality, or when assessing structural integrity following damage (e.g., during earthquakes, fires, or accidents), core testing provides objective evidence about the condition of the concrete. The test results can be used in legal or insurance claims to determine whether the concrete was adequate for the required load-bearing capacity and whether the structure met its original design strength.

4. Comparison of Concrete Cube and Concrete Core Testing

5. Conclusion

Both Concrete Cube Testing and Concrete Core Testing are indispensable in ensuring the structural integrity and quality of concrete used in construction projects. Cube testing is the go-to method for assessing fresh concrete during the mix and casting stages. It provides a rapid and cost-effective means of verifying that concrete meets the specified strength requirements.

On the other hand, concrete core testing is essential for evaluating the strength of hardened concrete in existing structures. This method offers valuable insights into the in-situ strength of concrete, particularly when the initial cube tests have shown that the structure may not meet strength expectations.

Adherence to the relevant Indian Standard Codes ensures that both types of testing are conducted reliably and consistently. These codes guarantee that engineers and construction professionals can make informed decisions regarding the concrete’s performance and take corrective measures when necessary.

By incorporating both cube and core testing methods, engineers can ensure that their concrete structures are safe, durable, and capable of withstanding the loads and environmental conditions they are designed for. Testing concrete regularly ensures compliance with building codes and minimizes the risk of structural failure.
