Coarse and fine aggregate

Coarse Aggregate Test



Coarse and Fine Aggregate Testing

Aggregates are essential materials in the production of concrete, accounting for approximately 60-75% of the total volume. The physical properties of these aggregates have a significant influence on the quality, strength, durability, and workability of the concrete. Ensuring that the aggregates used in construction are of the right quality is therefore crucial for achieving optimum concrete performance. Various tests are conducted to assess the properties of coarse and fine aggregates to ensure their suitability. This report provides an in-depth look at the essential tests performed on coarse and fine aggregates, explaining their purposes, testing procedures, benefits, and reference standards according to Indian Standard Codes (IS).

  1. Gradation Sieve Analysis of Coarse Aggregate

Purpose:
The Gradation Sieve Analysis of coarse aggregates determines the particle size distribution of the aggregates, which significantly influences the properties of concrete. Proper grading of aggregates improves the workability, strength, and durability of concrete. When aggregates are well-graded, there is better packing in the concrete mix, which reduces voids and lowers the cement requirement for the same mix.

Procedure:

  • A representative sample of coarse aggregate is taken.
  • The sample is weighed and then passed through a series of sieves with progressively smaller mesh sizes.
  • The material retained on each sieve is weighed, and the percentage of material passing through each sieve is calculated.
  • A gradation curve is then plotted to assess the distribution of the aggregate particles across the sieve sizes.

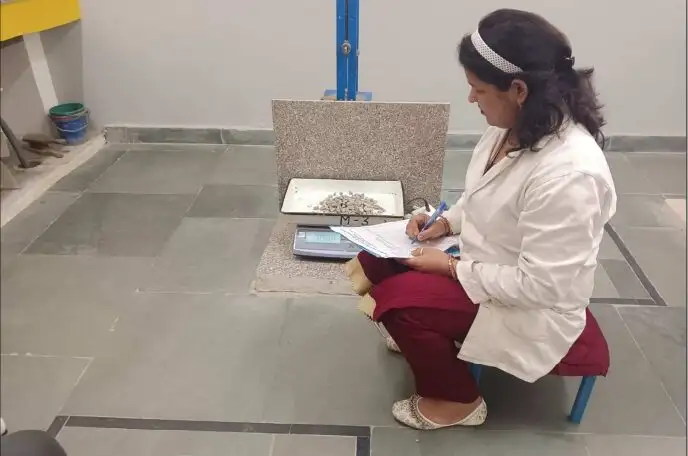

Coarse Aggregate Test 2

Benefits:

  • Improved Workability:Properly graded aggregates help achieve better packing density, which enhances workability.
  • Enhanced Concrete Strength:A better-packed aggregate structure with fewer voids results in a denser and stronger concrete mix.

Code Reference:

  • IS 2386 (Part 1): 1963 – Methods of Test for Aggregate for Concrete: Part 1 – Particle Size and Shape.
  1. Aggregate Impact Value (AIV)

Purpose:
The Aggregate Impact Value (AIV) test measures the resistance of coarse aggregates to sudden shock or impact. This test is particularly important for aggregates used in concrete subjected to impact or heavy loads, such as pavements, roads, and structures exposed to vibrations.

Procedure:

  • A standard sample of coarse aggregate is placed in a cylindrical mould.
  • The sample is subjected to 15 blows from a hammer falling from a specified height.
  • After the test, the percentage of fines (material passing through a 2.36 mm sieve) is calculated, and the Aggregate Impact Value is determined.

Benefits:

  • Durability Assessment:Aggregates with a low AIV (below 30%) are more durable and suitable for impact-prone applications such as roads and pavements.
  • Quality Control:Identifies aggregates that are susceptible to breakage under impact, ensuring the selection of high-quality aggregates for critical structures.

Code Reference:

  • IS 2386 (Part 4): 1963 – Methods of Test for Aggregate for Concrete: Part 4 – Mechanical Properties.
  1. Specific Gravity and Water Absorption of Coarse Aggregates (Size Between 40 mm and 10 mm)

Purpose:

  • Specific Gravity:The specific gravity of aggregates determines their density relative to water. It plays a vital role in the concrete mix design, particularly in calculating the water-cement ratio.
  • Water Absorption:This test measures the water absorption capacity of aggregates, which affects the water-cement ratio and workability of the concrete mix.

Procedure:

  • Specific Gravity:A dry sample of aggregate is weighed. The sample is then immersed in water, and the weight is measured. The specific gravity is calculated using the formula: Specific Gravity=Weight of Dry SampleWeight of Dry Sample−Weight in Water\text{Specific Gravity} = \frac{\text{Weight of Dry Sample}}{\text{Weight of Dry Sample} – \text{Weight in Water}}Specific Gravity=Weight of Dry Sample−Weight in WaterWeight of Dry Sample​
  • Water Absorption:The aggregate sample is soaked in water for 24 hours, after which it is weighed. The percentage increase in weight is calculated to determine the water absorption rate.

Benefits:

  • Accurate Mix Design:The specific gravity value helps in determining the correct proportions of aggregates in the concrete mix.
  • Workability Control:Knowing the water absorption rate ensures the correct amount of water is added, contributing to the desired workability and mix consistency.

Code Reference:

  • IS 2386 (Part 3): 1963 – Methods of Test for Aggregate for Concrete: Part 3 – Specific Gravity, Density, Voids, Absorption, and Bulking.
  1. Crushing Value of Coarse Aggregate

Purpose:
The Crushing Value test evaluates the resistance of aggregates to crushing under compressive loads. It is particularly crucial for aggregates used in high-strength concrete and those exposed to heavy traffic loads or mechanical stresses.

Procedure:

  • A sample of coarse aggregate is placed in a cylindrical mould.
  • A specified load is applied using a compression testing machine.
  • After the test, the material passing through a 2.36 mm sieve is weighed, and the Crushing Value is calculated as the percentage of fines produced.

Benefits:

  • Aggregate Selection:A low Crushing Value indicates stronger aggregates that are better suited for high-strength concrete mixes.
  • Durability Assurance:Aggregates with a low Crushing Value can withstand heavy traffic and compressive loads without breaking, ensuring the durability of concrete structures.

Code Reference:

  • IS 2386 (Part 4): 1963 – Methods of Test for Aggregate for Concrete: Part 4 – Mechanical Properties.
  1. Combined (F&E) Flakiness and Elongation Indices of Coarse Aggregates

Purpose:
The Flakiness Index and Elongation Index tests assess the shape of coarse aggregate particles. Flaky and elongated particles are undesirable because they reduce interlocking between aggregate particles, negatively impacting the concrete’s strength and workability.

Procedure:

  • Flakiness Index:The aggregate is sieved, and particles with a thickness less than 0.6 times their mean dimension are considered flaky.
  • Elongation Index:Particles with a length greater than 1.8 times their mean dimension are considered elongated. The combined flakiness and elongation index is determined by adding the values of both indices.

Benefits:

  • Improved Concrete Quality:Low flakiness and elongation indices improve the strength and durability of concrete.
  • Enhanced Workability:Well-shaped aggregates interlock better, reducing segregation and improving workability.

Code Reference:

  • IS 2386 (Part 1): 1963 – Methods of Test for Aggregate for Concrete: Part 1 – Particle Size and Shape.
  1. Elongation Index of Coarse Aggregate

Purpose:
The Elongation Index test measures the percentage of elongated particles in the aggregate. Elongated particles tend to have poor bonding properties and reduce the strength and durability of concrete.

Procedure:

  • The sample of coarse aggregate is sieved, and the percentage of particles whose length is greater than 1.8 times the mean dimension is calculated.

Benefits:

  • Enhanced Concrete Strength:Reducing the elongation index helps ensure effective interlocking of aggregates, improving the overall strength of concrete.
  • Improved Mix Stability:Avoiding elongated particles ensures greater stability and uniformity in the concrete mix.

Code Reference:

  • IS 2386 (Part 1): 1963 – Methods of Test for Aggregate for Concrete: Part 1 – Particle Size and Shape.
  1. Flakiness Index of Coarse Aggregate

Purpose:
The Flakiness Index test evaluates the proportion of thin, flat particles in the aggregate. These particles are undesirable because they tend to deform under load, leading to a weakened concrete mix.

Procedure:

  • The sample of aggregate is sieved, and particles with a thickness less than 0.6 times their mean dimension are considered flaky.
  • The percentage of flaky particles is then calculated.

Benefits:

  • Improved Workability:Aggregates with a low flakiness index enhance particle packing, improving workability and stability.
  • Enhanced Durability:Reduces the risk of segregation and improves the durability of concrete.

Code Reference:

  • IS 2386 (Part 1): 1963 – Methods of Test for Aggregate for Concrete: Part 1 – Particle Size and Shape.
  1. Soundness of Coarse, Fine, and Aggregate

Purpose:
The Soundness test evaluates the ability of aggregates to withstand weathering actions, such as freeze-thaw cycles. This is particularly critical for aggregates used in harsh climates or those exposed to extreme weather conditions.

Procedure:

  • Aggregates are immersed in a solution of sodium sulfate or magnesium sulfate and subjected to cycles of immersion and drying.
  • The loss of weight after each cycle is measured to assess the soundness of the aggregate.

Benefits:

  • Durability Assurance:Ensures that aggregates can endure freeze-thaw conditions without disintegrating.
  • Quality Control:Helps in selecting aggregates that will not degrade over time, ensuring long-lasting concrete structures.

Code Reference:

  • IS 2386 (Part 5): 1963 – Methods of Test for Aggregate for Concrete: Part 5 – Soundness.
  1. Material Finer than 75 Micron (μ) IS Sieve (Coarse Aggregate)

Purpose:
This test determines the amount of fine material (finer than 75 microns) present in coarse aggregates. Excessive fines can increase water demand, reduce strength, and compromise the workability of concrete.

Procedure:

  • The aggregate sample is passed through a 75 μm sieve, and the amount of material finer than this sieve is weighed.
  • The percentage of fines is calculated relative to the total sample weight.

Benefits:

  • Improved Concrete Quality:Helps control the quality of aggregates, reducing risks such as increased water demand or reduced strength.
  • Optimized Mix Design:Ensures the right balance of fines in the aggregate, which improves workability and stability.

Code Reference:

  • IS 2386 (Part 2): 1963 – Methods of Test for Aggregate for Concrete: Part 2 – Chemical and Physical Properties.
  1. Angularity Number of Coarse Aggregate

Purpose:
The Angularity Number measures the angularity or sharpness of coarse aggregate particles. Angular particles interlock better, improving the strength and stability of the concrete mix.

Procedure:

  • The aggregate sample is tested for angularity based on particle shape and the angle between edges.

Benefits:

  • Enhanced Concrete Strength:Angular particles interlock better, resulting in stronger concrete.
  • Improved Workability:Angular aggregates provide better stability and reduce segregation in the concrete mix.

Code Reference:

  • IS 2386 (Part 1): 1963 – Methods of Test for Aggregate for Concrete: Part 1 – Particle Size and Shape.
  1. Ten Percent Fine Value

Purpose:
The Ten Percent Fine Value test measures the resistance of coarse aggregates to crushing. It identifies aggregates likely to break under heavy traffic or mechanical loading.

Procedure:

  • A sample of coarse aggregate is subjected to a 400 kN load, and the fines produced are weighed. The percentage of fines is calculated relative to the total sample weight.

Benefits:

  • Strength Prediction:Low ten percent fine values indicate aggregates that can withstand heavy loads, making them suitable for high-stress concrete applications.
  • Durability:Ensures that aggregates maintain their structural integrity under compression over time.

Code Reference:

  • IS 2386 (Part 4): 1963 – Methods of Test for Aggregate for Concrete: Part 4 – Mechanical Properties.
  1. Gradation Sieve Analysis of Fine Aggregate

Purpose:
The Gradation Sieve Analysis of fine aggregates helps determine the particle size distribution, which affects the workability and cement consumption in concrete.

Procedure:

  • The fine aggregate is sieved through a series of sieves, and the percentage passing through each sieve is calculated.
  • A gradation curve is plotted to visualize the distribution of fine particles.

Benefits:

  • Improved Concrete Properties:Proper gradation enhances workability, reduces cement consumption, and increases the strength of the concrete.
  • Consistency:Ensures consistency in concrete performance across different batches.

Code Reference:

  • IS 2386 (Part 1): 1963 – Methods of Test for Aggregate for Concrete: Part 1 – Particle Size and Shape.
  1. Specific Gravity, Apparent Specific Gravity, and Water Absorption of Fine Aggregates

Purpose:

  • Specific Gravity:Determines the density of fine aggregates relative to water, crucial for mix design.
  • Water Absorption:Measures the water absorption capacity of fine aggregates, impacting the water-cement ratio.

Procedure:

  • The fine aggregate sample is immersed in water, and the dry weight is measured.
  • The specific gravity and water absorption are calculated based on standard formulas.

Benefits:

  • Accurate Mix Design:Helps determine the correct amount of water required for the mix.
  • Improved Workability:Ensures proper balance between cement and water, improving workability.

Code Reference:

  • IS 2386 (Part 3): 1963 – Methods of Test for Aggregate for Concrete: Part 3 – Specific Gravity, Density, Voids, Absorption and Bulking.
  1. Material Finer than 75 Micron (μ) IS Sieve (Fine Aggregate)

Purpose:
This test determines the proportion of fine material smaller than 75 microns in fine aggregates. Excessive fines can reduce the strength and workability of the concrete mix.

Procedure:

  • Fine aggregate is passed through a 75 μm sieve, and the amount of material finer than this sieve is weighed.

Benefits:

  • Optimized Concrete Mix:Ensures the fine content is within the acceptable limits, improving mix stability.
  • Enhanced Strength and Workability:Proper control of fines leads to better concrete quality.

Code Reference:

  • IS 2386 (Part 2): 1963 – Methods of Test for Aggregate for Concrete: Part 2 – Chemical and Physical Properties.

This comprehensive testing of coarse and fine aggregates ensures that only the highest quality materials are used in concrete production. By evaluating various properties such as particle size, shape, strength, durability, and water absorption, engineers can optimize concrete mixes, ensuring that the final product is durable, strong, and workable. Each of these tests serves a vital role in maintaining high standards for construction projects across the world.
