Cement OPC and PPC

Introduction

Ordinary Portland Cement (OPC) and Portland Pozzolana Cement (PPC) form the backbone of modern construction, providing strength, durability, and versatility to concrete structures. OPC is the most commonly used type of cement due to its quick setting time and rapid strength development, making it ideal for time-sensitive projects such as skyscrapers, highways, and prefabricated structures. Its composition primarily includes clinker and a small amount of gypsum, which regulates the setting time.

In contrast, PPC is a blend of OPC clinker, gypsum, and pozzolanic materials like fly ash, silica fume, or volcanic ash. Pozzolanic materials react with calcium hydroxide released during hydration, forming additional cementitious compounds. This secondary reaction enhances the durability of PPC, especially in aggressive environments like marine structures, sewage treatment plants, and chemical industries. Moreover, PPC is a sustainable choice, as it utilizes industrial byproducts, reduces greenhouse gas emissions during manufacturing, and lowers the heat of hydration, minimizing thermal cracking in large concrete pours.

The importance of quality cement cannot be overstated. Subpar cement can compromise the structural integrity of buildings, leading to premature failures, safety hazards, and costly repairs. To ensure that cement meets the required performance standards, rigorous testing is conducted. This report focuses on five essential tests: standard consistency, setting time, soundness, compressive strength, and fineness (Blaine test). These tests, prescribed by industry standards such as the Bureau of Indian Standards (BIS), enable engineers to determine the suitability of OPC and PPC for various applications.

1. Standard Consistency of Cement

Description
Standard consistency is the minimum amount of water required to form a cement paste that allows the Vicat plunger to penetrate 5-7 mm from the base of the mold. This test provides critical information for determining water-cement ratios in mix designs, ensuring that the concrete achieves desired workability and strength.

For instance, in high-strength concrete, achieving the correct water-cement ratio is crucial for ensuring that the cement paste adequately coats the aggregates without excess water that could lead to porosity and reduced strength.

Purpose of Testing

• Determine Water-Cement Ratio:The ratio of water to cement significantly impacts the strength, workability, and durability of concrete.
• Evaluate Workability:Standard consistency indicates whether the cement paste will be easy to mix, transport, and apply on-site.
• Ensure Uniformity:This test is critical for quality control, particularly when dealing with different cement batches or brands.

Testing Procedure Reference: IS 4031 (Part 4): 1988

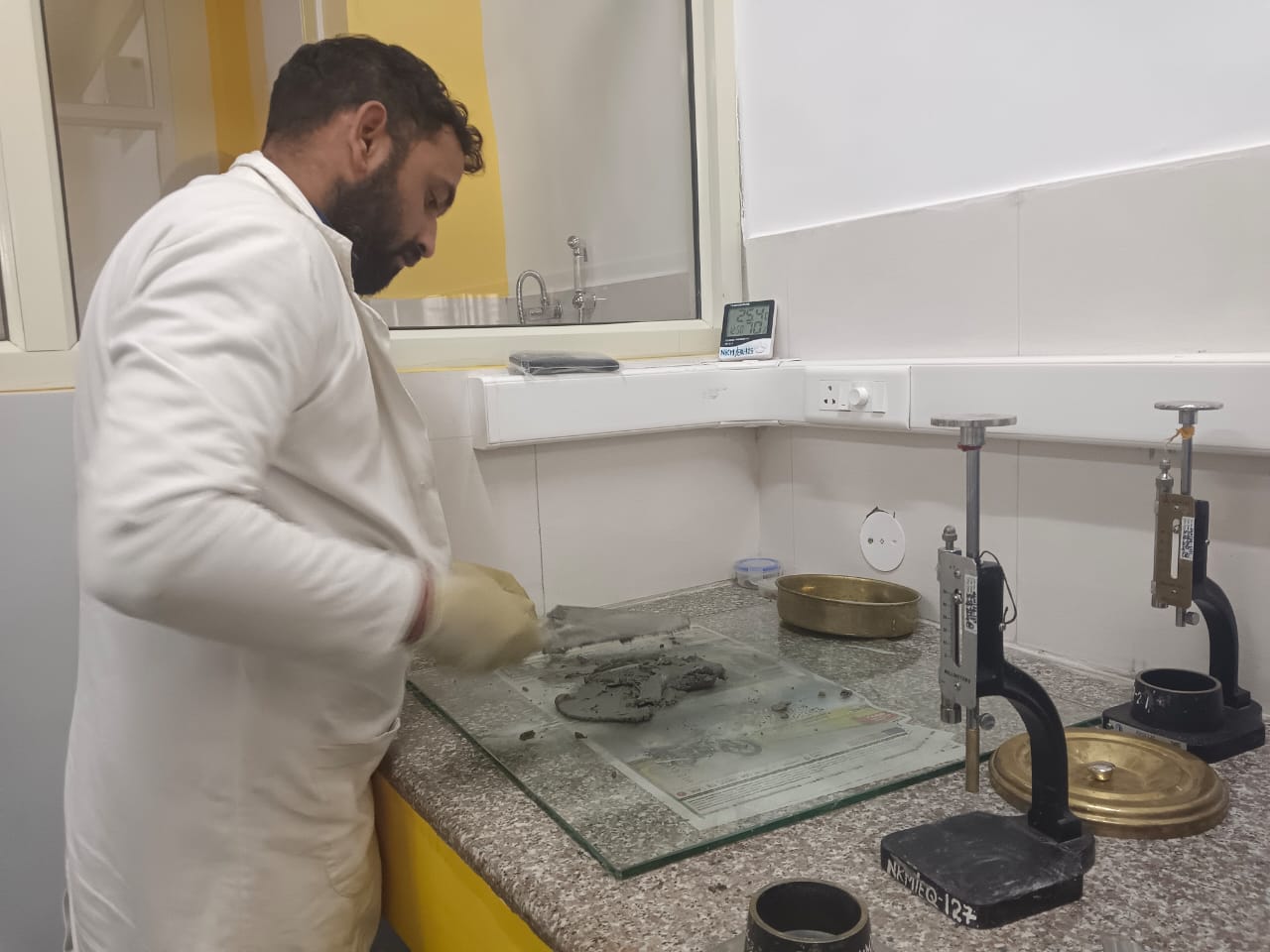

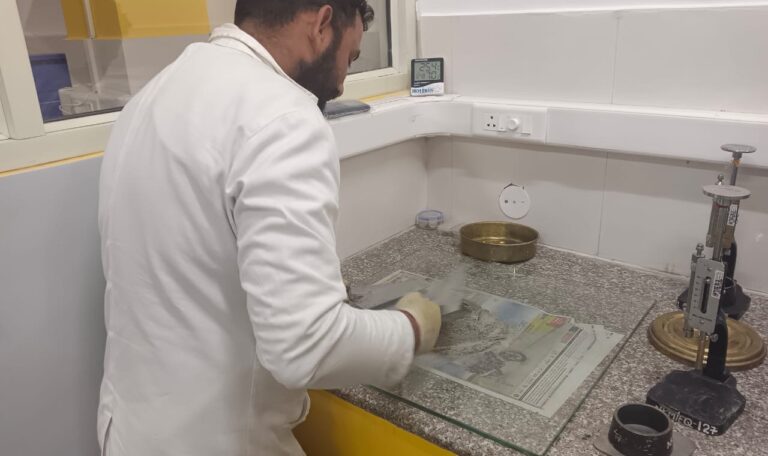

1. Preparation:Weigh 400 grams of cement and mix it with water incrementally.
2. Vicat Apparatus Setup:Place the paste in the Vicat mold, level the surface, and ensure no air pockets are trapped.
3. Penetration Test:Lower the plunger and observe its depth of penetration. Adjust the water content until the plunger penetrates to a depth of 5-7 mm from the bottom.
4. Reporting:The water content at standard consistency is expressed as a percentage of the cement weight.

Practical Considerations

• Variations in chemical composition, such as the amount of C3A (tricalcium aluminate), can affect water demand.
• Proper environmental controls are essential to prevent evaporation or absorption of water during testing.

Benefits

• Helps optimize mix designs for specific project requirements.
• Forms the basis for other critical tests like setting time and soundness.
• Ensures ease of placement and compaction, reducing construction defects.

Examples of Use:
In ready-mix concrete plants, ensuring consistent water demand across different cement supplies reduces batch-to-batch variability, improving overall quality.

Importance of Standard Consistency Testing
The test ensures that cement can achieve the required hydration, which directly affects the strength and durability of concrete structures. For large infrastructure projects, achieving the correct water-cement ratio is fundamental to preventing overhydration or underhydration issues that could compromise the integrity of the final structure.

2. Setting Time (Initial and Final)

Description
The setting time of cement defines the transition from a plastic to a rigid state.

• Initial Setting Time:The interval during which the cement remains workable for mixing, transporting, and placing.
• Final Setting Time:The interval after which the cement completely loses its plasticity and gains enough hardness to bear load.

For instance, in hot weather conditions, cement with a longer initial setting time is preferred to allow adequate time for placement and finishing. Conversely, rapid-setting cement is ideal for emergency repairs or underwater construction.

Purpose of Testing

• Evaluate Workability:Ensures the cement provides adequate working time for complex construction tasks like large concrete pours or intricate formwork.
• Monitor Hydration:Tracks the hydration rate, influencing the strength and durability of the structure.
• Ensure Compatibility:Helps determine whether the cement can meet specific project requirements, such as fast-track construction schedules.

Testing Procedure Reference: IS 4031 (Part 5): 1988

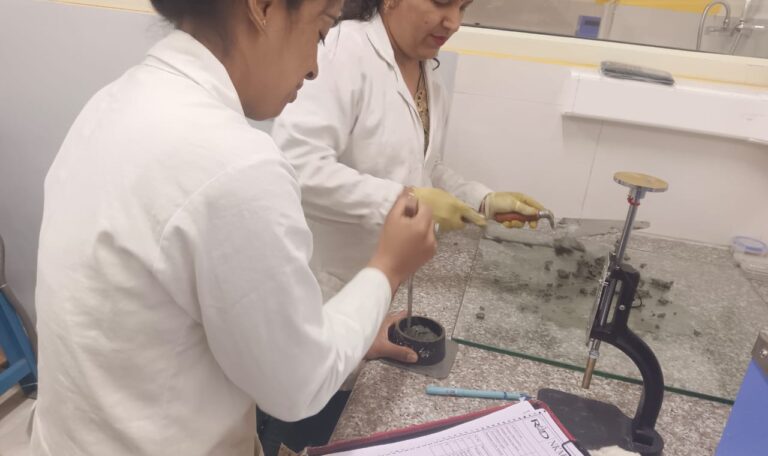

1. Initial Setting Time:

• Prepare a paste of standard consistency.
• Insert a 1 mm needle into the paste at regular intervals.
• Record the time when the needle penetrates no deeper than 33-35 mm.
  2. Final Setting Time:
• Replace the needle with a circular attachment.
• Record the time when the surface of the paste leaves no impression.

Factors Influencing Setting Time

• Cement Composition:High C3A content accelerates setting, while additives like gypsum delay it.
• Environmental Conditions:Elevated temperatures and low humidity reduce setting time.
• Water Content:Excess water slows down the setting process by diluting hydration products.

Benefits

• Facilitates construction planning and sequencing.
• Ensures the workability of cement under diverse environmental conditions.
• Provides compliance with regulatory standards.

Examples of Use:
For mass concreting, where heat buildup can cause cracking, PPC with a slower setting time is ideal to reduce thermal stress.

Importance of Setting Time Testing
Testing ensures that cement meets the specific needs of construction projects, allowing contractors to manage time-sensitive tasks and prevent premature stiffening or delayed setting. In tunnel construction or underwater placements, setting time tests help select the right cement for optimal performance.

3. Soundness of Cement (Le-Chatelier Method)

Description
Soundness testing ensures that cement does not expand excessively after setting. Excessive expansion can result from impurities like free lime or magnesia, leading to cracking or disintegration. The Le-Chatelier apparatus is widely used to measure expansion under standardized conditions.

Purpose of Testing

• Prevent Structural Failures:Unsound cement can lead to long-term issues like cracking, reducing the durability of structures.
• Detect Impurities:Free lime and magnesia can cause delayed expansion, compromising structural integrity.
• Ensure Durability:Stable volume changes are critical for maintaining the aesthetics and functionality of concrete structures.

Testing Procedure Reference: IS 4031 (Part 3): 1988

1. Preparation:Mix cement paste and fill the Le-Chatelier mold.
2. Initial Measurement:Measure the distance between indicator points.
3. Boiling Test:Submerge the mold in water, boil for three hours, and then cool it.
4. Final Measurement:Record the expansion as the difference between initial and final measurements.

Practical Considerations:

• Ensure consistent water temperature during the boiling phase.
• The paste must be free of air bubbles to avoid erroneous readings.

Benefits

• Identifies unsuitable cement before use, preventing costly repairs.
• Enhances confidence in the material’s durability.
• Ensures compliance with international quality standards.

Examples of Use:
In bridge construction, where dimensional stability is critical, sound cement prevents long-term maintenance issues caused by expansion-related cracks.

Importance of Soundness Testing
Unsound cement can lead to catastrophic failures in structures subjected to high loads or harsh environmental conditions. Testing ensures long-term performance and reliability, particularly in critical projects like dams, highways, and multi-story buildings.

4. Compressive Strength of Cement

Description
Compressive strength testing evaluates cement’s ability to withstand axial loads. It is a direct indicator of the structural safety and reliability of the material. The test is conducted on mortar cubes, which simulate the cement’s performance in concrete applications.

Purpose of Testing

• Assess Structural Safety:Confirms that the cement can bear loads without failure.
• Verify Standards Compliance:Ensures the cement meets the specified strength requirements for its grade.
• Aid in Mix Design:Provides data for optimizing the proportions of cement, sand, and aggregates.

Testing Procedure Reference: IS 4031 (Part 6): 1988

1. Preparation:Prepare mortar cubes in a 1:3 ratio of cement to sand.
2. Curing:Demold the cubes after 24 hours and cure them in water until the test day.
3. Testing:Place the cubes under a compression testing machine and apply a gradual load until failure.
4. Reporting:Record the load at failure and calculate compressive strength.

Factors Influencing Strength

• Fineness of cement improves particle packing and strength.
• Proper curing ensures adequate hydration.
• Accurate proportions of materials prevent inconsistencies.

Benefits

• Ensures structural safety and reliability.
• Aids in selecting the appropriate cement grade for specific applications.
• Enhances construction quality and performance.

Examples of Use:
In dam construction, where high-strength concrete is essential, compressive strength tests guide the selection of cement to withstand immense loads.

Importance of Compressive Strength Testing
This test is critical for ensuring that the structure can support its intended loads without failure. High-strength cement ensures durability in high-rise buildings, bridges, and industrial facilities.

5. Fineness of Cement (Blaine Test)

Description The Blaine fineness test measures the specific surface area of cement particles per unit weight. Finer cement particles provide a larger surface area for hydration, enhancing strength development and reducing setting time.

Purpose of Testing

• Evaluate Hydration Rate:Ensures adequate fineness for quick and uniform hydration.
• Optimize Mix Proportions:Guides the selection of water-cement ratios for desired properties.
• Ensure Quality Control:Detects variations in cement quality between batches.

Testing Procedure Reference: IS 4031 (Part 2): 1999

1. Preparation:Take a sample of cement and dry it to a constant weight.
2. Permeability Apparatus Setup:Pass air through the sample and measure the pressure drop.
3. Calculation:Use the pressure drop to calculate specific surface area in m²/kg.

Factors Influencing Fineness

• Grinding Process:Efficient grinding produces fine particles.
• Clinker Composition:Harder clinkers require more grinding, affecting fineness.

Benefits

• Enhances early strength and setting time control.
• Improves concrete homogeneity and workability.
• Reduces segregation and bleeding in fresh concrete.

Examples of Use:
In precast concrete production, fine cement ensures rapid strength gain, allowing faster removal of molds and increased production rates.

Importance of Fineness Testing
The fineness of cement directly affects its performance in terms of strength, setting time, and durability. Ensuring adequate fineness minimizes risks of incomplete hydration, which could compromise structural integrity.

Importance of Cement Testing

Cement testing is a cornerstone of construction quality control and assurance. The importance of cement testing can be summarized as follows:

1. Ensuring Quality and Durability:Testing ensures that cement meets industry standards and performs as expected under various conditions. This is critical for the longevity and durability of structures.
2. Compliance with Standards:Adherence to BIS and international testing standards guarantees that the material meets legal and regulatory requirements.
3. Prevention of Structural Failures:Detecting issues such as unsoundness, inadequate strength, or delayed setting times reduces the risk of structural defects and failures.
4. Optimizing Material Use:Proper testing helps in determining the ideal mix design, minimizing wastage, and reducing overall construction costs.
5. Improved Sustainability:By ensuring that cement is used efficiently and responsibly, testing contributes to the sustainability of construction practices.
6. Informed Decision-Making:Results from cement tests enable engineers to select the most suitable material for specific applications, ensuring compatibility and performance.

Advantages of OPC and PPC Testing

1. Advantages of OPC Testing:

• Rapid Strength Development:Ensures suitability for fast-paced construction projects.
• High Versatility:Confirms the adaptability of OPC for a wide range of applications.
• Regulatory Compliance:Verifies that the material meets required strength and durability benchmarks.

2. Advantages of PPC Testing:

• Enhanced Durability:Testing confirms resistance to sulfate and chloride attacks, critical for harsh environments.
• Eco-Friendly:Ensures the effective use of pozzolanic materials, reducing environmental impact.
• Lower Heat of Hydration:Helps prevent thermal cracking in large concrete pours.

Environmental and Sustainability Aspects

1. Reduced Carbon Footprint:PPC helps utilize industrial by-products like fly ash, which would otherwise contribute to environmental degradation.
2. Resource Efficiency:PPC reduces the need for clinker production, which is energy-intensive and emits significant CO2.
3. Sustainable Infrastructure:Using PPC promotes sustainable construction practices by increasing the lifespan and reducing the maintenance requirements of structures.
4. Recycling Opportunities:Cement testing ensures industrial waste materials are effectively reused, minimizing landfill impact.

Innovations in Cement Testing

1. Non-Destructive Testing (NDT):Advanced techniques like ultrasonic pulse velocity (UPV) and rebound hammer tests provide insights into cement and concrete quality without damaging samples.
2. Microstructure Analysis:Tools like scanning electron microscopy (SEM) and X-ray diffraction (XRD) analyze cement’s microstructural properties, enhancing quality control.
3. Automated Testing Systems:Automated machines ensure consistent, reliable, and faster testing results, improving efficiency in laboratories.

Conclusion

Comprehensive testing of OPC and PPC ensures their suitability for diverse construction applications. Each test—standard consistency, setting time, soundness, compressive strength, and fineness—provides essential insights into the material’s performance and reliability. Testing ensures compliance with quality standards, optimizes material use, and contributes to the sustainability of modern construction practices. By addressing the specific needs of projects, rigorous testing of OPC and PPC cements lays the foundation for safer, more durable, and environmentally responsible infrastructure development.
