California Bearing Ratio (CBR) Testing of Soil (Soaked & Unsoaked)

Introduction

The California Bearing Ratio (CBR) test is one of the most widely used and well-established tests in geotechnical engineering for evaluating the strength and load-bearing capacity of soil. It is primarily applied in the design of pavements, highways, airfields, railway tracks, and foundation systems, where soil needs to withstand the stresses imposed by loads such as vehicles or buildings. The test, developed in the 1920s by the California Division of Highways, determines the resistance of soil to penetration under a standard load, simulating the effect of traffic loads on the subgrade soil.

There are two main conditions for performing the CBR test: soaked and unsoaked. The soaked test simulates the worst-case scenario where the soil becomes saturated with water, while the unsoaked test measures the behavior of dry soil or soil at its natural moisture content. This detailed report will cover the significance, procedure, and applications of the CBR test, discussing its advantages, benefits, and adherence to relevant standards.

Objective of the California Bearing Ratio (CBR) Test

The CBR test measures the load required to penetrate a soil sample at a specified rate of penetration, simulating the effect of traffic loads on the subgrade of a pavement. Its main objectives are:

• To assess soil strength and load-bearing capacity: The test helps evaluate the ability of soil to support vehicular and structural loads, which is critical for road, runway, and building foundation designs.
• To determine pavement layer thickness: The CBR value is used to determine the appropriate thickness of various layers in flexible pavements (such as subbase and base layers), which are designed to distribute the load across the soil.
• To compare different soils: The test allows for comparison between different soil types, helping engineers select the most suitable material for construction.
• To simulate real-world loading conditions: The soaked and unsoaked tests help simulate typical conditions under which the soil will perform. Soaked conditions reflect waterlogged scenarios, while unsoaked tests represent drier, natural conditions.

Benefits of CBR Testing

The CBR test offers several benefits, particularly in the context of construction and transportation infrastructure projects:

1. Assessment of Soil Strength and Performance: The CBR test provides a clear and reliable indication of the soil’s bearing capacity, which is crucial for determining whether the soil is suitable for the intended use in infrastructure projects.
2. Improved Pavement Design: CBR values are directly related to pavement design. Knowing the CBR value of the subgrade soil allows engineers to optimize the thickness of different layers in a flexible pavement structure, thereby reducing material costs and ensuring the pavement’s durability.
3. Comparison of Soil Properties: The CBR test allows engineers to compare the strength and performance of various soils, helping in the selection of materials for road construction, foundation work, and other infrastructure projects.
4. Cost-Effectiveness: Compared to other soil strength tests, the CBR test is relatively inexpensive to perform. It requires basic laboratory equipment and provides fast results that are crucial for project timelines.
5. Standardized and Well-Accepted Method: The CBR test follows internationally recognized procedures, and the results are widely accepted by professionals in the civil engineering field.

Advantages of CBR Testing

Several advantages make the CBR test a preferred choice for evaluating soil properties in civil engineering projects:

1. Simplicity and Accessibility: The procedure for conducting the CBR test is simple and does not require complex machinery. Most geotechnical laboratories are equipped with the necessary apparatus, making the test easily accessible.
2. Direct Application to Pavement Design: The CBR test provides data that directly influences the design of flexible pavements. It is integral in determining the structural integrity of the pavement, allowing engineers to design cost-effective and durable road systems.
3. Quick Turnaround of Results: The test is relatively fast compared to other soil strength tests, with results often available within a few hours to a couple of days, depending on the specific conditions and sample preparation.
4. Use in Various Soil Types: The CBR test can be conducted on a wide range of soil types, including sand, gravel, clay, and silty soils. This makes it highly versatile in the context of soil evaluation.
5. Widely Recognized and Accepted: Due to its long-standing use and international recognition, the CBR test results are accepted for use in various engineering applications globally. This consistency provides reliability for infrastructure projects that require standardization.

Applications of CBR Testing

The CBR test has numerous applications in civil engineering, particularly in the design and construction of infrastructure projects. Some of the key applications include:

1. Road Pavement Design

The CBR test is most commonly used in the design of flexible pavements for roads, highways, and streets. The CBR value obtained from the test helps engineers determine the appropriate thickness of the pavement structure needed to carry the anticipated traffic loads without failure. The CBR value is essential in designing each layer of the pavement, including:

• Subgrade Layer: The natural soil layer that provides the foundation for the pavement.
• Subbase Layer: A layer of granular material placed on top of the subgrade to distribute the load.
• Base Layer: A layer of higher-quality material that provides additional strength to the pavement.

By knowing the CBR value, engineers can optimize the design to ensure the pavement performs effectively over its expected lifespan.

2. Airfield Pavement Design

Airports require strong pavements capable of withstanding the immense loads imposed by aircraft. The CBR test is used to assess the soil’s ability to support heavy aircraft and determine the required pavement thickness for runways, taxiways, and aprons. Soaked CBR tests are often more critical in this context because of the potential for soil saturation due to the presence of water on airfields.

3. Railway Track Foundations

Railway tracks also require robust foundations, as they need to withstand significant loads from trains. The CBR test helps determine the strength of the soil supporting the railway track and allows engineers to design the track substructure accordingly.

4. Foundation Design

For building foundations, the CBR test provides useful information about the soil’s strength, which helps engineers design foundations that can support the load of the structure. This is particularly important in areas where soil properties can vary significantly, as the CBR test helps in determining whether the subgrade needs to be stabilized or if additional foundation work is required.

5. Determining Soil Suitability for Construction

The CBR test is often used during site investigations to determine the suitability of the soil for various construction activities. It provides essential data on whether the soil can support the intended loads and whether stabilization or replacement is necessary for construction.

Soaked vs. Unsoaked CBR Testing

The CBR test can be performed in two primary conditions: soaked and unsoaked. These conditions simulate different environmental scenarios, and each has its significance in pavement design and construction.

Soaked CBR Test

The soaked CBR test simulates a scenario in which the soil becomes saturated with water, either due to high rainfall or a high water table. Soaking the sample for a period of 96 hours (4 days) prior to testing represents conditions where the soil might remain wet for extended periods.

Procedure for Soaked CBR Test:

• A sample of soil is compacted into a cylindrical mould.
• After compaction, the sample is submerged in water for 96 hours, allowing the soil to reach full saturation.

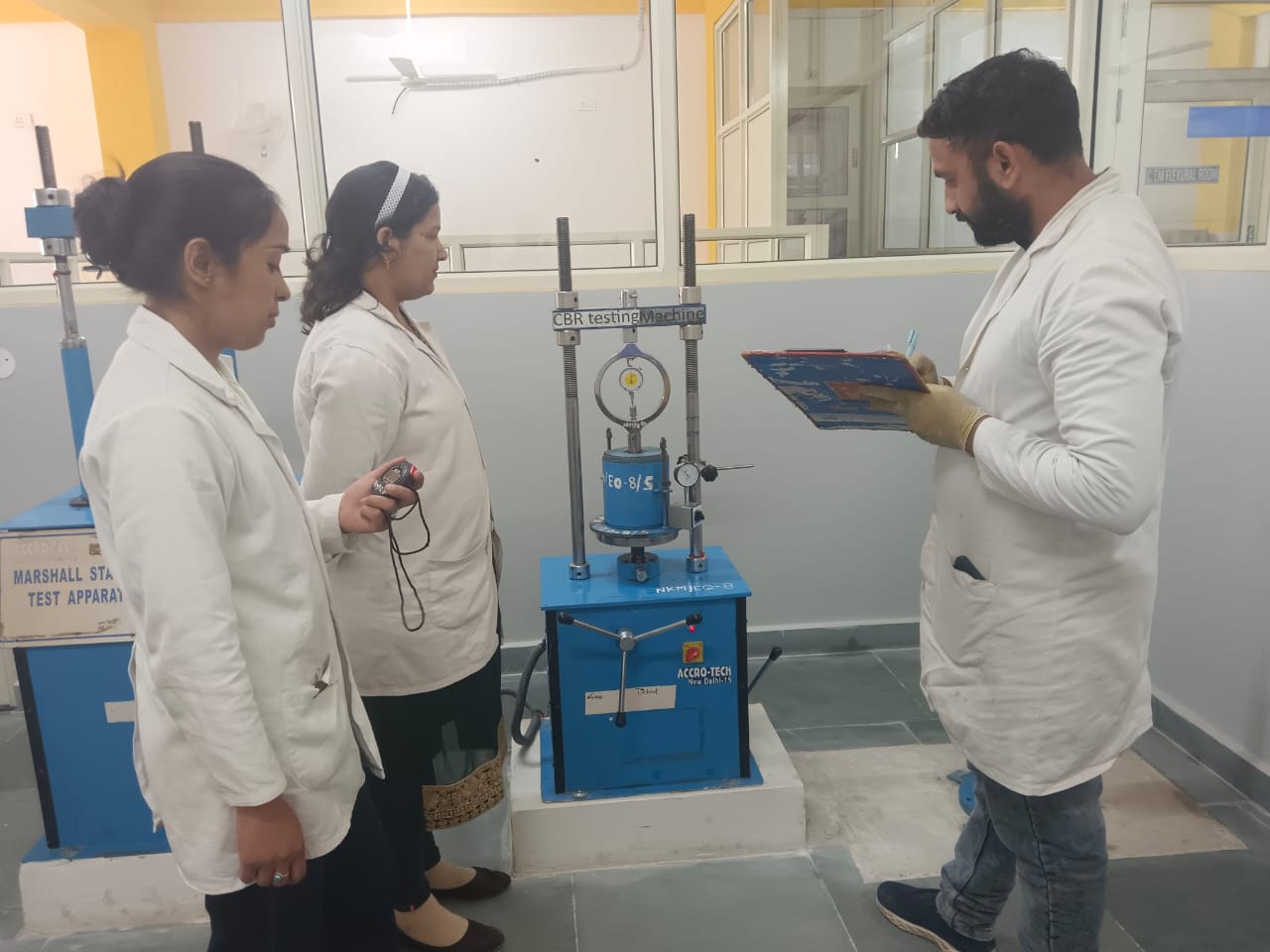

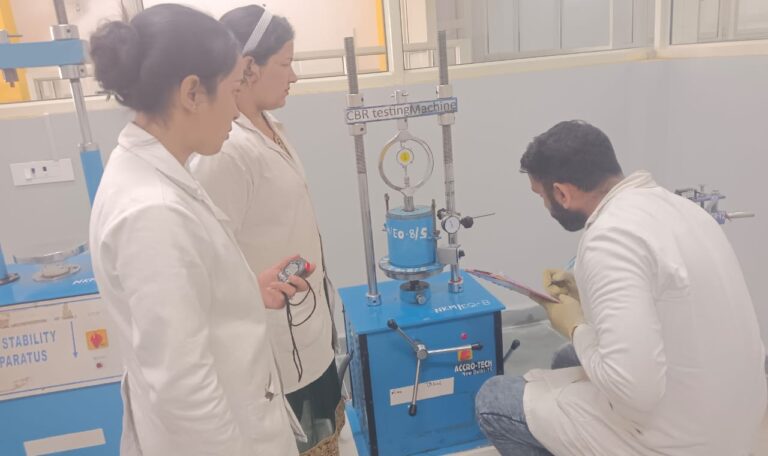

• Following soaking, a plunger is used to apply load, and the penetration resistance is measured.
• The CBR value is calculated based on the penetration load at standard depths (2.5 mm and 5 mm).

Importance: Soaked CBR values are crucial for areas prone to waterlogging or where soil moisture is expected to fluctuate significantly. The soaked test provides a worst-case scenario, helping engineers design pavements that can withstand periods of saturation.

Unsoaked CBR Test

The unsoaked CBR test is performed on soil that is tested without prior saturation. This condition simulates dry or moderately moist conditions where the soil does not experience prolonged saturation. It is usually performed on soil at its natural moisture content.

Procedure for Unsoaked CBR Test:

• The soil sample is compacted in the mould without soaking.
• The test is then conducted by applying a standard load through a penetration plunger, and the penetration resistance is measured.
• The unsoaked CBR value is calculated by comparing the penetration resistance at the standard penetration depths (2.5 mm and 5 mm).

Importance: The unsoaked CBR value reflects the performance of the soil under dry or normal moisture conditions. This is important in areas with good drainage or in regions that experience limited rainfall.

IS Code for CBR Testing

The Indian Standard (IS) Code for conducting the CBR test is IS 2720 (Part 16): 1987, which outlines the detailed procedure for performing both soaked and unsoaked CBR tests. The code specifies the following:

1. Equipment:

• Compaction Mould: A cylindrical mould of 150 mm diameter and 175 mm height is used.
• Compaction Rammer: A rammer of 2.6 kg weight is used for compacting the soil in layers.
• Penetration Plunger: A cylindrical plunger of 50 mm diameter is used to apply the load.
  2. Test Procedure:
• The soil sample is compacted in the mould according to a specified compaction effort.
• After compaction, the sample is either soaked or tested in its natural state.
• The load is applied to the sample using the penetration plunger, and the penetration is measured at specified intervals (2.5 mm and 5 mm).
• CBR values are calculated using the load values corresponding to the specified penetration depths.
  3. Reporting Results: The final CBR value is reported as the average of the values obtained at the 2.5 mm and 5 mm penetration depths. Soaked and unsoaked CBR values are calculated separately.

Procedure for CBR Testing (Soaked & Unsoaked)

1. Sample Preparation

• Soil is collected and prepared by removing large particles (larger than 20 mm in size) and air drying it.
• The sample is sieved and divided into smaller portions for testing.

2. Compaction of Soil

• The soil is compacted in the mould in three layers, each compacted with a specific number of blows (usually 55).
• The sample is compacted at its natural moisture content for the unsoaked test. For the soaked test, the sample is submerged in water for 96 hours before compaction.

3. Penetration Test

• A standard penetration plunger is used to apply load at a rate of 1.27 mm per minute.
• The penetration depth is recorded, and the load applied is measured at each specified depth (2.5 mm and 5 mm).

4. Calculation and Reporting

• The CBR value is calculated by comparing the measured load at each penetration depth to the load required for the same penetration in a standard material (usually crushed stone).
• The final CBR value is calculated as the ratio of the applied load to the standard load, multiplied by 100.

Precautions During CBR Testing

1. Proper Sample Preparation: Ensure that the soil sample is prepared correctly, with adequate moisture content and representative of the material being tested.
2. Controlled Moisture Content: For the soaked test, ensure that the soil is completely saturated for the specified period. For the unsoaked test, monitor the moisture content to ensure that it is within the desired range.
3. Accurate Load Application: Calibrate the load application system to ensure that the plunger applies the load evenly and accurately.
4. Consistent Testing Environment: Perform the test under controlled environmental conditions, avoiding external factors like temperature and humidity fluctuations that could affect the results.

Conclusion

The California Bearing Ratio (CBR) test is a vital and widely used procedure in geotechnical engineering, helping engineers assess the load-bearing capacity and strength of soils. The CBR test provides essential data for designing pavement structures, foundations, and other load-bearing elements in construction. By considering both soaked and unsoaked conditions, the CBR test offers a comprehensive view of the soil’s behavior under various environmental conditions, ensuring optimal design for long-term performance.

Following the guidelines provided in IS 2720 (Part 16) ensures that the test is conducted accurately, providing reliable results that can be used for various construction applications. The simplicity, cost-effectiveness, and direct application of CBR testing make it an indispensable tool for engineers and construction professionals worldwide.
