Burnt Clay Building Bricks Testing

Introduction

Burnt clay building bricks have been a staple in construction for centuries, owing to their strength, durability, and cost-effectiveness. As one of the oldest and most widely used building materials, bricks made from clay are employed in the construction of various structures, including residential, commercial, and industrial buildings. Given the importance of these bricks in ensuring the safety and integrity of construction, it is essential that they meet specific quality standards. To guarantee that burnt clay bricks meet the required structural and aesthetic standards, various tests are conducted to assess their physical and mechanical properties. These tests include dimension testing, compressive strength testing, water absorption testing, and efflorescence testing. This report delves into the details of these tests and their importance in ensuring the quality and reliability of burnt clay bricks. The tests are performed in adherence to Indian Standard (IS) codes, particularly IS 1077:1992, which sets the specifications for common burnt clay building bricks.

1. Dimension Testing of Common Burnt Clay Building Bricks

Description

The dimensional accuracy of bricks is a critical factor in the construction process, as it directly impacts the alignment and uniformity of the masonry. Dimension testing involves measuring the physical dimensions of bricks, including their length, width, and height, to determine whether they conform to the specified standards. Bricks that deviate from the prescribed dimensions may cause problems during construction, such as uneven mortar joints or structural weaknesses. Therefore, dimension testing plays a pivotal role in ensuring that bricks meet the required specifications for a consistent and sturdy building structure.

Purpose of Testing

The primary purposes of dimension testing are:

• Ensure Uniformity: Dimension testing ensures that bricks are manufactured with consistent sizes, which is essential for ease of construction. Uniform brick dimensions allow for smoother fitting of bricks and minimize the need for on-site adjustments.
• Evaluate Workmanship: The dimensional accuracy of bricks serves as a reflection of the manufacturing process and the quality of workmanship involved in producing the bricks. Deviations from standard dimensions may indicate flaws in the production process.
• Prevent Structural Issues: By maintaining consistency in brick dimensions, the risk of structural issues, such as misaligned walls or uneven load distribution, is minimized.

Testing Procedure

The procedure for dimension testing, as per IS 1077:1992 (Specification for Common Burnt Clay Building Bricks), is as follows:

1. Sample Selection: A representative sample of 20 bricks is selected from the batch for testing. The sample should be randomly chosen to ensure that the test results are reflective of the overall quality of the batch.
2. Measurement: The dimensions of each brick are measured using a steel scale or Vernier caliper. The measurements should be taken carefully, ensuring that the length, width, and height of each brick are recorded accurately.
3. Allowable Tolerances: According to IS 1077:1992, the standard dimensions of a brick are 190 mm × 90 mm × 90 mm. However, slight variations in dimensions are allowed. The permissible tolerances for each dimension are:

• Length: ±3%
• Width: ±2%
• Height: ±2%

If the measured dimensions of any brick deviate beyond the permissible limits, it is considered to be non-compliant with the standard.

4. Reporting: The individual dimensions of each brick are recorded, and the average dimensions are calculated. Any bricks that do not meet the required specifications should be highlighted in the report, and corrective action may be required.

Benefits of Dimension Testing

• Improved Masonry Quality: Ensures that bricks are of uniform size, which results in better alignment and uniform mortar joints.
• Reduced Material Wastage: When bricks are uniform in size, there is less need for adjustments or cutting on-site, leading to reduced material wastage.
• Enhanced Aesthetics: Uniform bricks contribute to a visually appealing construction, with consistent wall finishes.
• Compliance Assurance: Dimension testing verifies whether the bricks adhere to the IS 1077:1992 standards, ensuring compliance with industry specifications.

2. Compressive Strength of Common Burnt Clay Building Bricks

Description

Compressive strength is one of the most critical properties of burnt clay bricks, as it indicates the brick’s ability to withstand loads without failure. The compressive strength test determines how much weight a brick can bear before it breaks. This is particularly important for ensuring that bricks can support the weight of the structure they are used in, such as floors, walls, and roofs. The compressive strength test is performed using a compression testing machine, which applies a uniform load to the brick until failure occurs.

Purpose of Testing

The primary objectives of compressive strength testing are:

• Assess Load-Bearing Capacity: The test helps determine whether the brick can withstand the applied loads, ensuring its suitability for structural applications.
• Verify Quality: The compressive strength of a brick is a key indicator of its quality. Higher compressive strength typically indicates better quality and durability.
• Ensure Structural Safety: A brick with inadequate compressive strength can lead to structural failure under load. The test ensures that bricks meet the required strength standards to prevent potential safety hazards.

Testing Procedure

According to IS 3495 (Part 1):1992 (Methods of Tests for Burnt Clay Building Bricks), the compressive strength test is performed as follows:

1. Sample Preparation: At least five bricks are randomly selected from the batch. These bricks should be soaked in water for 24 hours to remove surface moisture, as moisture content can affect the accuracy of the test results.
2. Test Setup: The brick is placed in a compression testing machine with its frog (if present) facing upwards. The machine applies a uniform load at a rate of 14 N/mm² per minute until the brick fails.
3. Calculation: The maximum load (in kN) at which the brick fails is recorded. The compressive strength is then calculated using the formula:

Compressive Strength(N/mm2)=Maximum Load(N)Loaded Area(mm2)\text{Compressive Strength} (N/mm²) = \frac{\text{Maximum Load} (N)}{\text{Loaded Area} (mm²)}Compressive Strength(N/mm2)=Loaded Area(mm2)Maximum Load(N)​

4. Reporting: The compressive strength of all tested bricks is averaged to determine the final result. If the average compressive strength is below the minimum requirement, the batch is considered non-compliant.

Minimum Requirements

As per IS 1077:1992, the minimum compressive strength for common burnt clay bricks should be at least 3.5 N/mm².

Benefits of Compressive Strength Testing

• Structural Integrity: Ensures that the bricks are capable of bearing the loads required for safe construction.
• Safety Assurance: Helps reduce the risk of structural collapse or failure by ensuring that bricks meet minimum strength requirements.
• Quality Control: Verifies that the bricks meet industry standards for compressive strength, ensuring that they are suitable for use in load-bearing applications.
• Material Optimization: Compressive strength testing helps manufacturers select the appropriate bricks for different applications based on their strength characteristics.

3. Water Absorption of Common Burnt Clay Building Bricks

Description

The water absorption test determines the porosity of bricks by measuring how much water they absorb when immersed in water. Bricks with high porosity are more likely to absorb water, which can lead to reduced durability and strength over time. Excessive water absorption can also cause the bricks to weaken and deteriorate, particularly when exposed to weathering conditions. Therefore, assessing water absorption is essential for evaluating the long-term performance of bricks.

Purpose of Testing

The main purposes of water absorption testing are:

• Evaluate Porosity: To determine the density and quality of the bricks. Low porosity indicates a denser, stronger brick, while high porosity indicates a weaker, more absorbent brick.
• Assess Weather Resistance: Bricks with low water absorption are better suited for outdoor and exposed applications, as they are less likely to deteriorate in wet conditions.
• Identify Manufacturing Defects: Excessive water absorption may indicate defects in the manufacturing process, such as improper firing or the use of low-quality raw materials.

Testing Procedure

The water absorption test is performed according to IS 3495 (Part 2):1992, as follows:

1. Sample Preparation: A minimum of five bricks are selected from the batch. The bricks are cleaned to remove any loose particles.

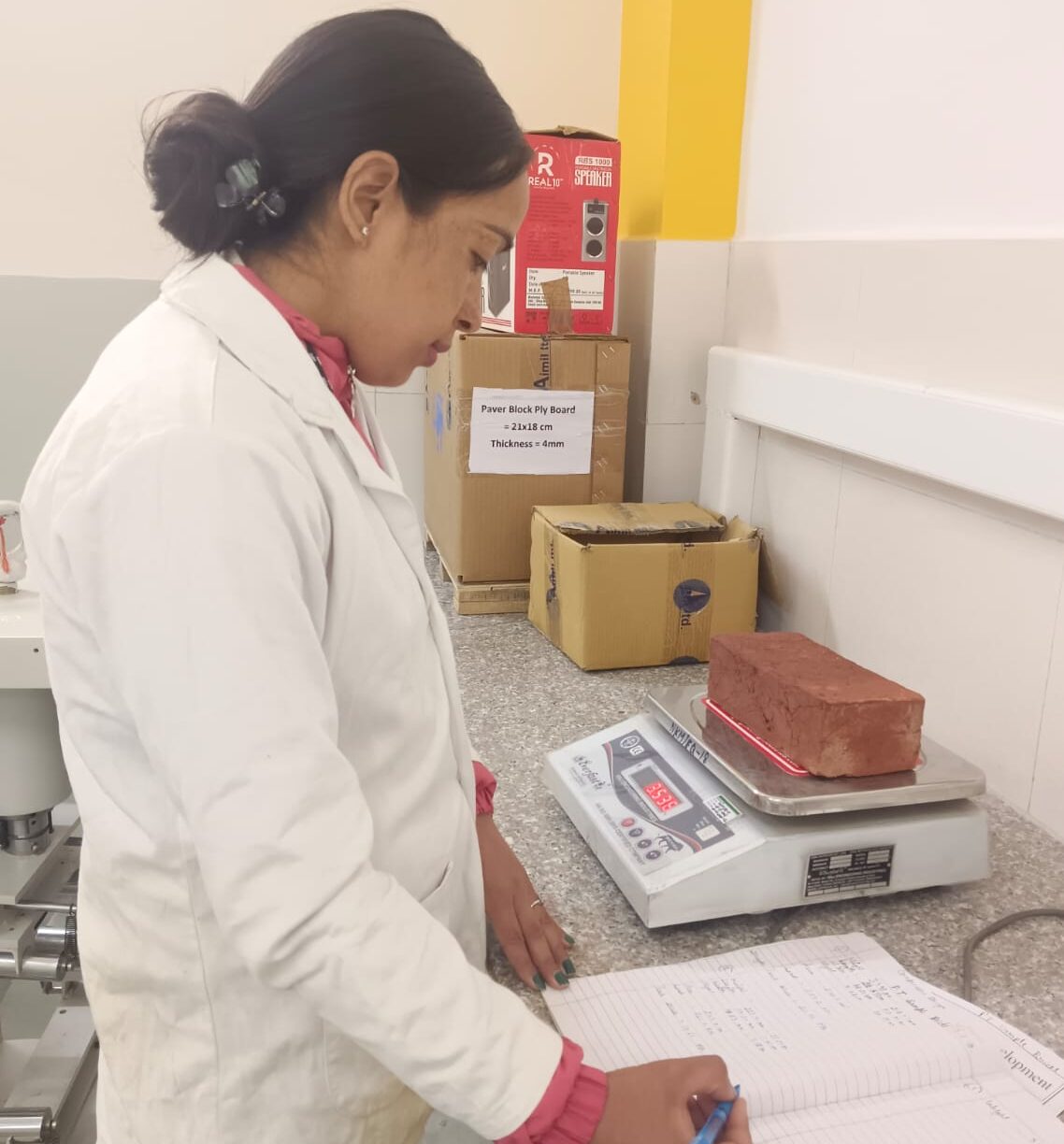

2. Dry Weight Measurement: The bricks are oven-dried at a temperature of 105–115°C for 24 hours, after which they are cooled to room temperature. The dry weight (W1) of each brick is recorded.
3. Water Immersion: The bricks are immersed in water at 27 ± 2°C for 24 hours.
4. Wet Weight Measurement: After immersion, the bricks are removed from the water, surface moisture is wiped off, and the wet weight (W2) is recorded.
5. Calculation: Water absorption is calculated using the formula:

Water Absorption(%)=(W2−W1)W1×100\text{Water Absorption} (\%) = \frac{(W2 – W1)}{W1} \times 100Water Absorption(%)=W1(W2−W1)​×100

6. Reporting: The individual and average water absorption values are recorded. Bricks with excessive water absorption may be rejected.

Maximum Allowable Limit

According to IS 1077:1992, the water absorption of common burnt clay bricks should not exceed 20% by weight.

Benefits of Water Absorption Testing

• Durability Assurance: Bricks with low water absorption tend to be more durable and resistant to environmental factors, thus ensuring longer-lasting constructions.
• Weather Resistance: Water absorption testing helps to ensure that the bricks are suitable for external applications, particularly in regions with high humidity or rainfall.
• Material Selection: The test aids in selecting bricks that are appropriate for different environmental conditions.
• Standard Compliance: Verifies that the bricks meet the water absorption requirements specified in IS 1077:1992.

4. Efflorescence Test for Common Burnt Clay Building Bricks

Description

Efflorescence refers to the formation of whitish, powdery deposits on the surface of bricks due to the presence of soluble salts. These salts can leach out of the brick and form deposits when the brick is exposed to moisture. Efflorescence is undesirable as it can affect the aesthetics of the masonry and may also indicate poor manufacturing quality. The efflorescence test helps identify the presence of soluble salts in the brick.

Purpose of Testing

The main purposes of efflorescence testing are:

• Evaluate Aesthetic Quality: To ensure that the bricks maintain their appearance and do not develop unsightly deposits that may detract from the visual appeal of the building.
• Assess Durability: Excessive efflorescence can indicate that the bricks are prone to salt-induced deterioration, which may affect their long-term performance.
• Control Material Quality: The presence of efflorescence may indicate impurities in the raw materials used to make the bricks, which can affect both their appearance and durability.

Testing Procedure

The efflorescence test is conducted according to IS 3495 (Part 3):1992, as follows:

1. Sample Selection: A minimum of five bricks are selected from the batch.
2. Immersion in Water: The bricks are placed in a shallow dish with water, ensuring the water level is about 25 mm deep.
3. Drying: The setup is placed in a well-ventilated room with a temperature of 20–30°C for 24 hours. During this time, the bricks absorb water, and any soluble salts within the brick may migrate to the surface and form deposits.
4. Assessment: After drying, the degree of efflorescence is observed and classified as follows:

• Nil: No deposits.
• Slight: Less than 10% of the surface covered.
• Moderate: 10–50% of the surface covered.
• Heavy: More than 50% of the surface covered, but without powdering.
• Serious: Heavy deposits with powdering and flaking.
  5. Reporting: The degree of efflorescence is recorded and classified.

Benefits of Efflorescence Testing

• Aesthetic Assurance: Ensures that the bricks retain their visual appeal and do not develop unattractive deposits.
• Durability Evaluation: Identifies bricks that are resistant to salt-induced damage, ensuring they will perform well over time.
• Improved Material Quality: Detects impurities in the raw materials used to manufacture the bricks, which can be addressed to improve quality.
• Compliance Verification: Confirms that the bricks meet the efflorescence standards outlined in IS 1077:1992.

Conclusion

Testing of common burnt clay building bricks is an essential process that ensures the quality, durability, and compliance of the bricks with industry standards, particularly IS 1077:1992. Dimension testing, compressive strength testing, water absorption testing, and efflorescence testing provide valuable insights into the suitability of the bricks for construction. These tests help manufacturers maintain quality control, minimize defects, and ensure that the bricks meet the required standards for structural safety, durability, and aesthetic quality. Regular testing also contributes to reducing long-term maintenance costs and improving the sustainability of construction practices. Ultimately, the testing process ensures that burnt clay bricks remain a reliable and trusted material for building safe, durable, and aesthetically pleasing structures.
